Scanner Unit

Remove the following covers.
- Scanner front cover (Scanner Front Cover (IM 600SRF))
- Right upper cover (Right Upper Cover (IM 600SRF))
- Left upper cover (Left Upper Cover (IM 600SRF))
- Rear fan cover (Rear Fan Cover (IM 600SRF Only))

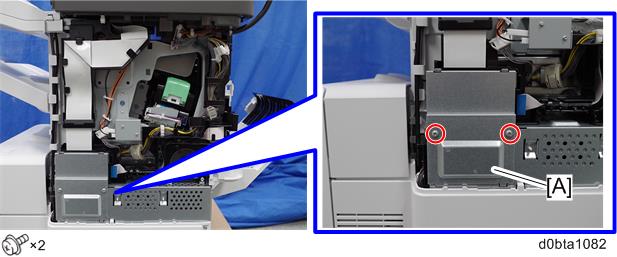

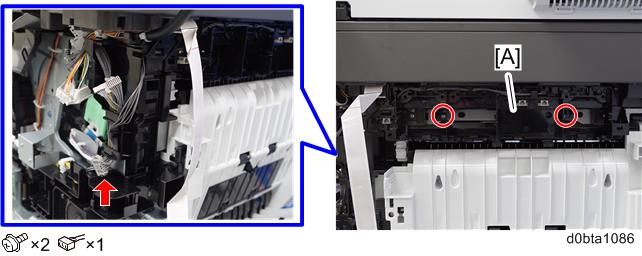

Remove the bracket [A].

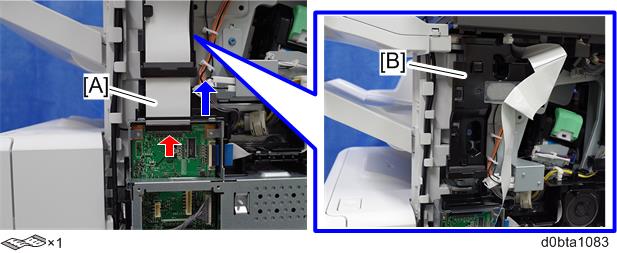

Disconnect the flat cable [A] and release it from the harness guide [B].

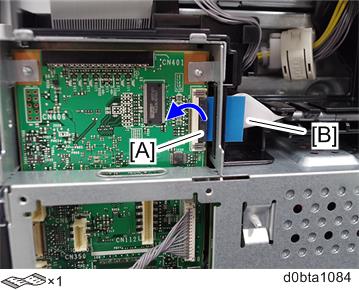

Open the lock [A] and disconnect the flat cable [B].

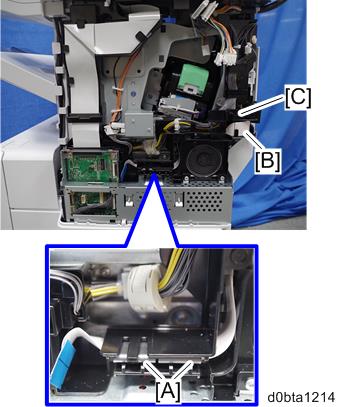

Release the flat cable [A] from the harness guide [B] and remove the cores [C].

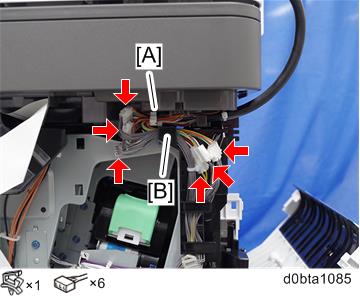

IM 550F/600F: Open the clamp [A] and disconnect the six connectors.

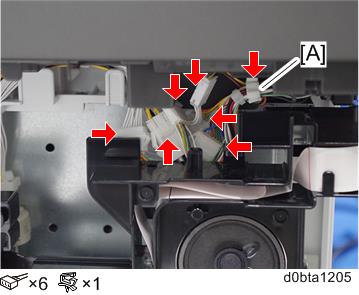

IM 600SRF: Open the clamp [A] and disconnect the six connectors. Then release the connectors from the harness guide [B].
IM 600SRF: Remove the fan bracket [A].

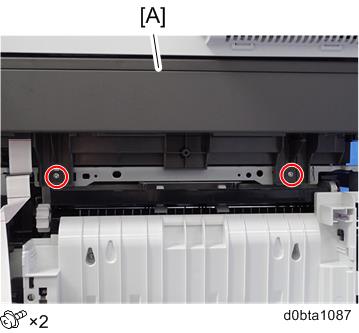

Remove the two screws from the rear side of the scanner unit [A].

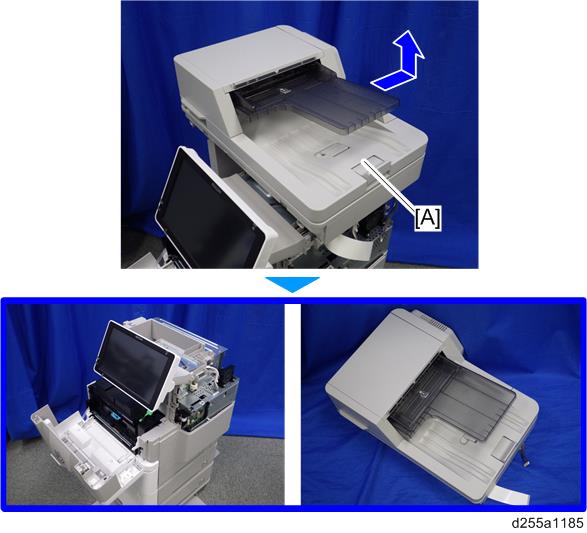

Remove the scanner unit [A].
