Paper jam (J001) occurred after removing the jammed paper from the registration section

Symptom

Paper jam (J001) occur after removing the paper which was jammed between the fusing section and registration section. This is because the registration filler has got under the registration roller when removing the jammed paper.

Solution

1. Open the front cover.
   IM 550F/600F/600SRF: Push the button [A] and open the front cover [B].

   P 800/801: Open the upper cover [A], and then open the front cover [B].

2. Pull out the PCDU [A].

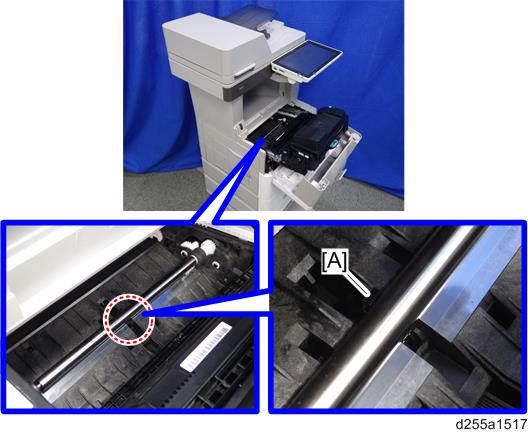

3. Check whether the registration filler [A] moves smoothly.
