1. Remove the CIS assembly. (CIS)

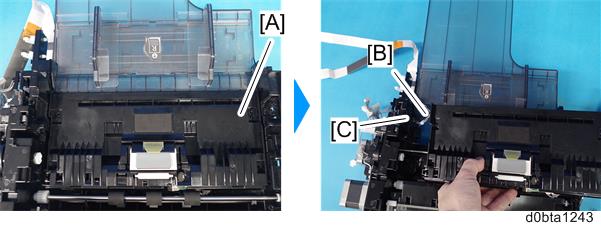

  2. Remove the conveying guide [A].
    Pull out the harness [B] through the hole [C].

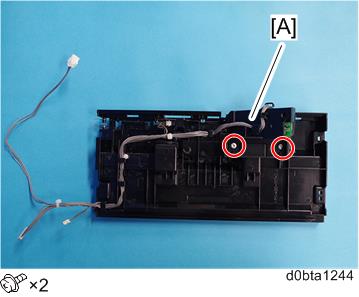

  3. Remove the bracket [A].

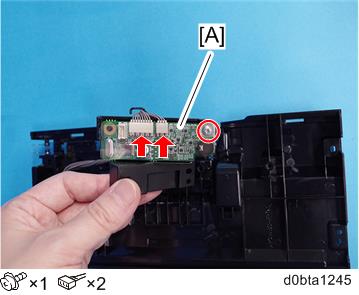

  4. Remove the DF double feed detector RX PCB (PCB26) [A].
