IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
DF (IM 550F/600F/600SRF Only)
DF Rear Left Cover

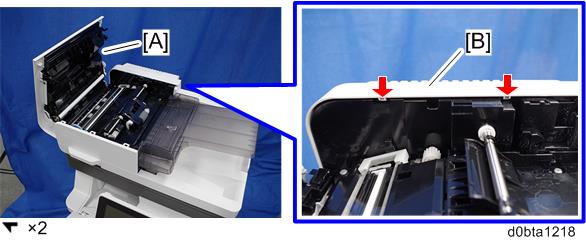

Open the DF top cover [A].
Twist the DF rear left cover [B] to release two hooks.

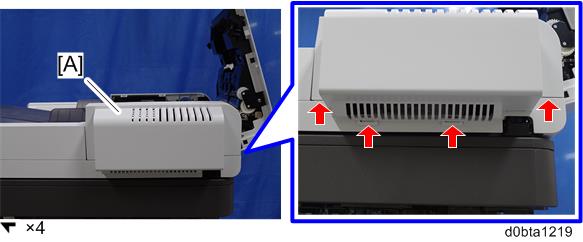

Remove the DF rear left cover [A].
