IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Gathering Roller Motor (M14)
Remove the left upper cover. (
Left Upper Cover (IM 550F/600F)
)

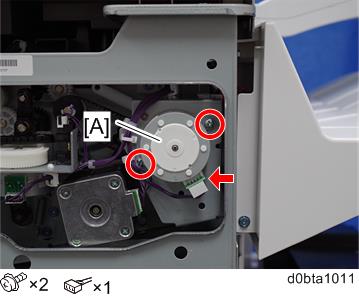

Remove the finisher gathering roller motor (M14) [A].
Expand All
