Remove the drawer unit cover. (Drawer Unit Cover)
Remove the cover [A].
Remove the paper transfer belt unit. (Paper Transfer Belt Unit)
Remove the edge detection sensor shift motor [A] along with the bracket.

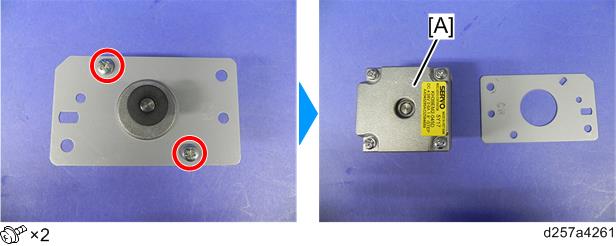

Remove the edge detection sensor shift motor [A].
- When installing the motor, attach the timing belt [A] at the edge detection unit.
- When installing the motor, attach the timing belt [A] at the edge detection unit.
