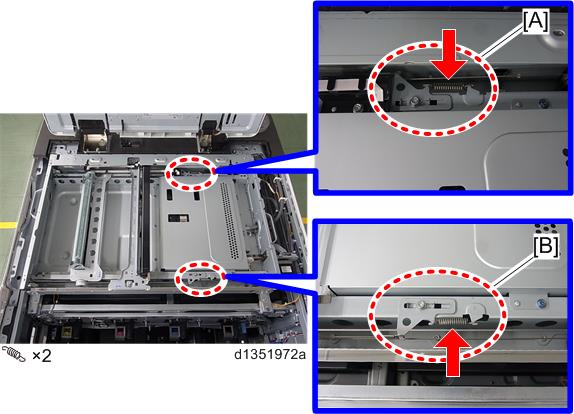

1. Move the 1st scanner carriage [B] to a position where the screw [A] of the bracket can be seen.
  2. Remove the springs of the tension brackets (rear: [A] / front: [B]).
  3. Loosen the fixing screws of the tension brackets (rear: [A] / front: [B]).
  4. Remove the retaining brackets (rear: [A] / front [B]) from the wire.
  5. Remove the tip and the rear end of the wire (rear / front).
  6. Unscrew the wire pulleys (rear: [A] / front [B]) and drive pulley [C]. Remove the wire pulleys from the shaft.
  7. Remove the rear and front wires.
