- Remove the original feed unit. (Original Feed Unit)

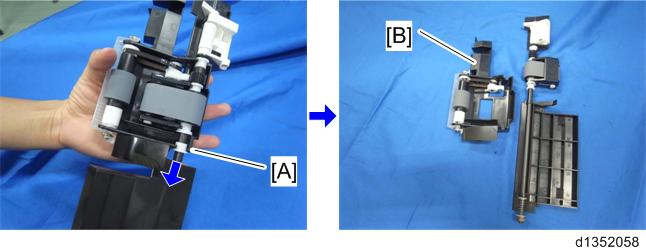

Slide the resin bushing [A], and then remove the pick-up roller unit [B].
- At re-assembly, make sure that the tab on the front guide plate [A] is above the pick-up roller [B].
- At re-assembly, make sure that the tab on the front guide plate [A] is above the pick-up roller [B].
- Pick-up roller cover [A] and pick-up roller [B].
- Lift the left and right sides of the feed belt holder [A], then remove it.
- Remove the feed belt [B] from the feed belt holder [A].
