- Remove the ITB unit. (ITB Unit Removal)

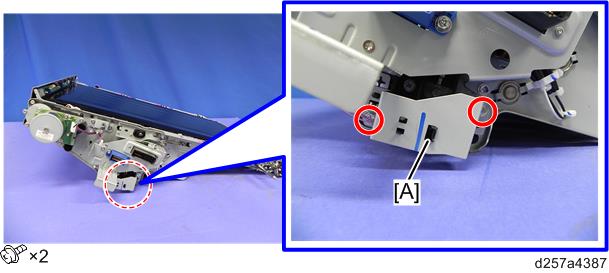

- Remove the bracket with paper transfer belt separation sensor [A].
- Detach the paper transfer belt separation sensor [A] from the bracket.
