- Remove the heating sleeve belt unit. (Heating Sleeve Belt Unit)

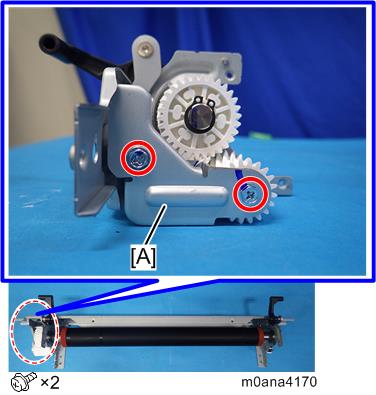

- Remove the bracket [A].

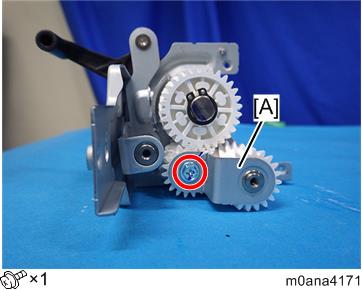

- Remove the bracket [A].

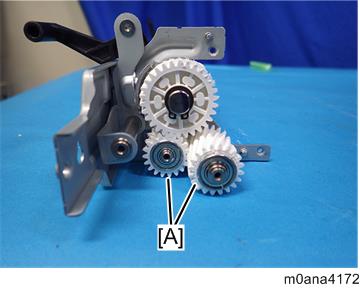

- Remove the pressure roller idler gears [A].
