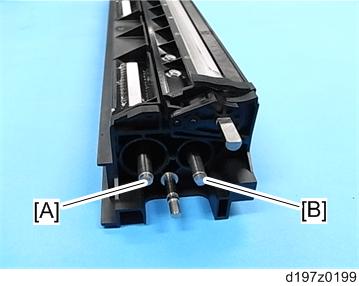

• [A]: Development Mixing Auger (L)
  • [B]: Development Mixing Auger (R)

  1. Remove the development unit. (PCU/Development Unit)
  2. Remove the developer. (Developer)
  3. Remove the development mixing auger bearings. (Development Mixing Auger Bearings)

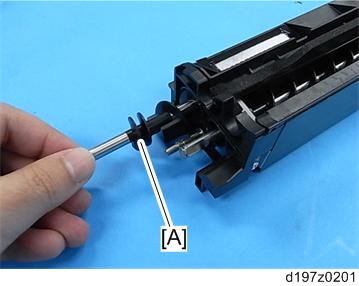

  4. Remove the development mixing auger (L) [A].

  5. Remove the development mixing auger (R) [A].

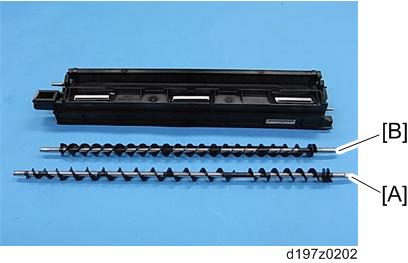

    • Each auger is different; please make sure that the augers are attached correctly.
    • [A]: Development Mixing Auger (L)
    • [B]: Development Mixing Auger (R)
