This section shows you how to manually move the machine from one floor to another floor.

  • Turn off the main power.
  • Disconnect the power plug from the outlet.
  • Close all covers and paper trays, including the front cover and bypass tray.
  • Keep the machine level and carry it carefully, taking care not to jolt or tip it, and protect the machine from strong shocks.

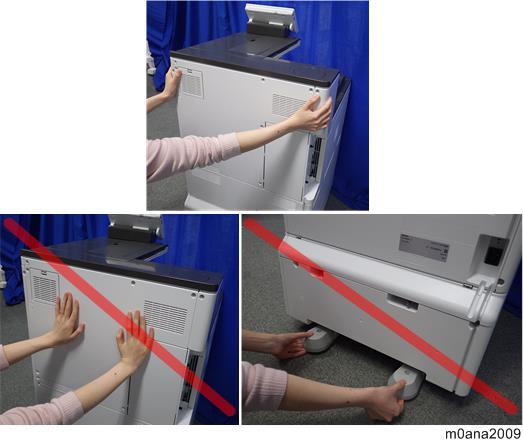

  • Do not push the center part of the rear cover. Do not hold the covers of the stabilizers.

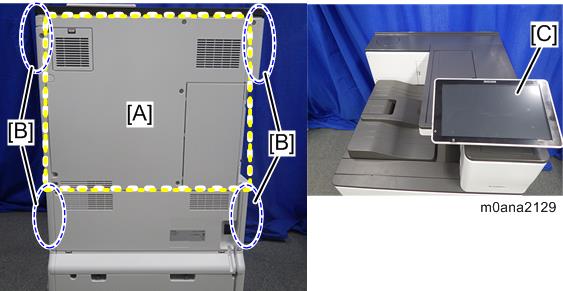

  • Do not put hard pressure on the rear cover [A] when moving or picking up the machine because it is fragile. This also applies to the operation panel [C]. Hold parts [B] when moving the machine.

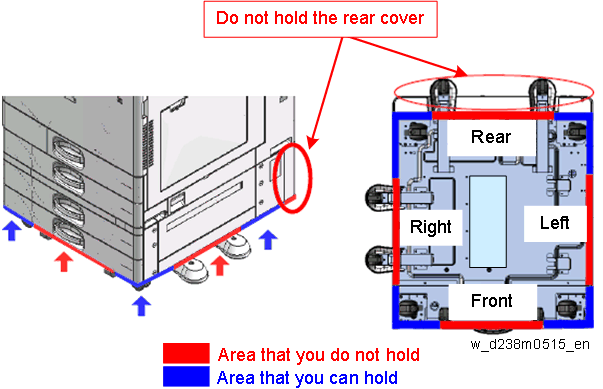

  • Hold 4 corners on the bottom base when holding the machine with the optional paper feeding tray joined to the main machine. Do not hold any other parts.
