- Turn on the machine.
- Manually lift the paper surface detection feeler [A] to keep the sensor “ON”.
Keep lifting the feeler until step 4.

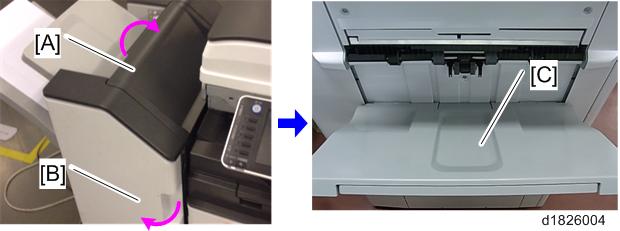

Open and close the upper cover [A] or the front cover [B]. The shift tray [C] starts to descend.
"JAM227" is displayed about 3 seconds later. The shift tray descent is stopped. Release your hand from the feeler.

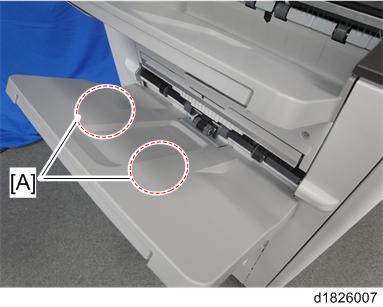

Clean the place [A] to attach the fixing sheet with alcohol.

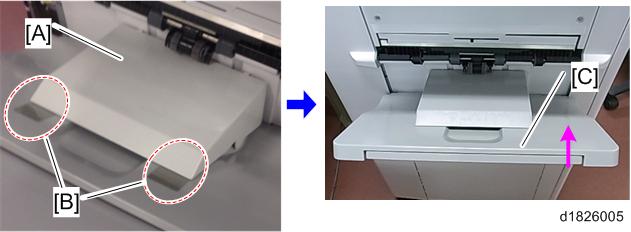

Place the auxiliary tray [A] on the shift tray.
Attach the fixing sheet [B] on the shift tray and fasten the auxiliary tray.
Open and close the front cover or the upper cover. The shift tray starts to rise [C], and ”JAM227” is cleared.
