- Replace the laser unit with a new laser unit.

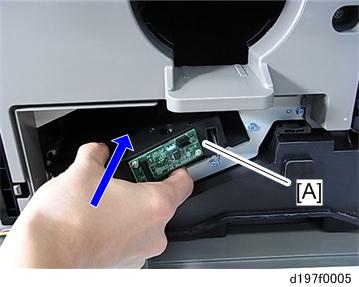

- Insert the new laser unit [A] halfway.
- Connect three harnesses to the new laser unit (
x 3).

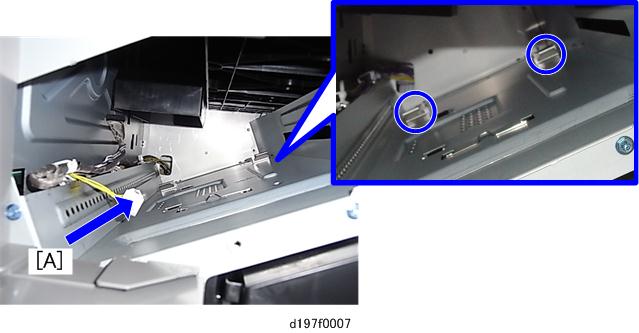

Insert the new laser unit along the guide frame [A].
- Make sure that the new laser unit claws fit into two mainframe claws as shown below.
Mainframe Claws

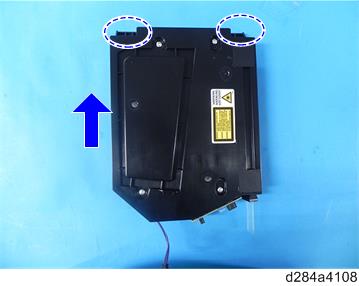

Laser Unit Claws

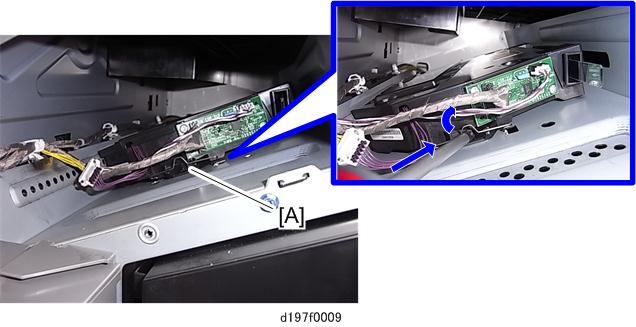

- Set the laser unit with the stopper [A].
- Use a screw driver to pry in the stopper.
- Attach the laser unit cover [A].
