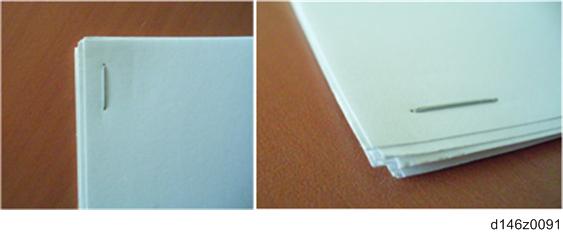

If a paper alignment problem occurs as shown below, do the following procedure to adjust the jogger width.
- Place one A4 paper (LEF) in the paper tray.
- Select [Staple] in the printer driver and then execute printing (two or more originals).
- Printing starts, but stops after one sheet because paper runs out.

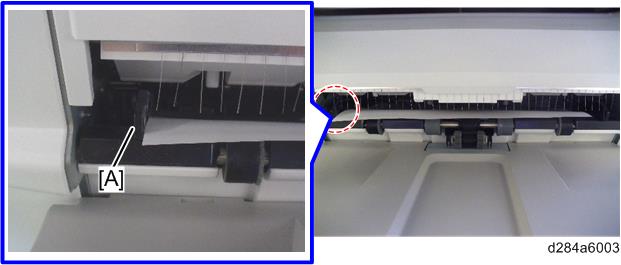

- The paper is put out on the staple tray. Put the paper next to the rear jogger [A].

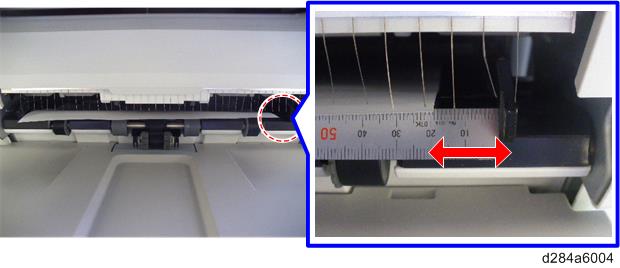

- Measure the distance between the aligning side of the front jogger and the edge of the paper with a scale.
Adjust the jogger width with SP6-143-004 (adjustable threshold: -1.5 to +1.5 mm for each paper size). SP6-143-004 (Jogger Pos Adj:1K FIN)
Adjust the jogger width to be slightly narrower (approximately -0.5 mm) than the paper width.
- Repeat step 1 through step 5 to make the jogger width same as the paper width.
