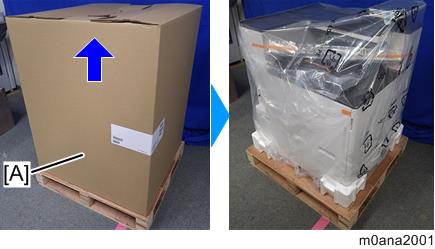

- Remove the shipping box [A].

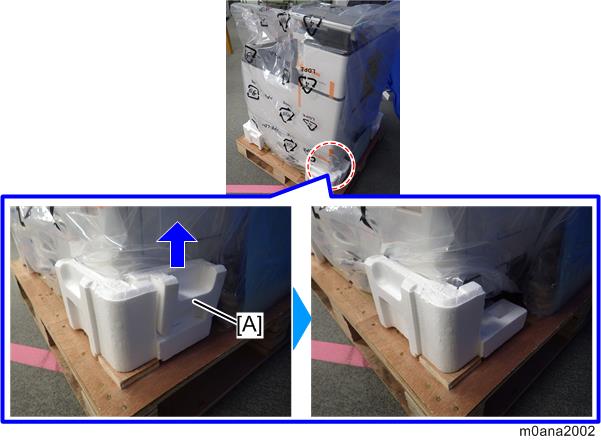

- Remove the retainer [A] at the lower front right before lifting up the machine, because the handle for lifting the machine is hidden by the retainer [A].

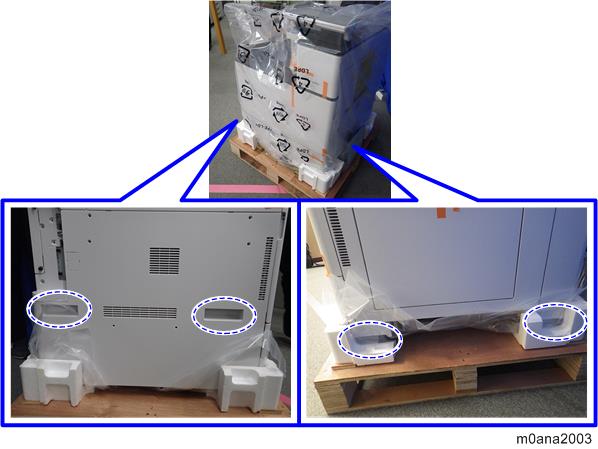

Hold the handles located on both sides (blue circles), and then lift it slowly. Lifting it carelessly or dropping it may cause an injury.
- The printer weighs approximately 57 kg (125.7 lb.). Four or more people are required to lift the printer.
- Do not lift by holding the operation panel, because this might break the operation panel.

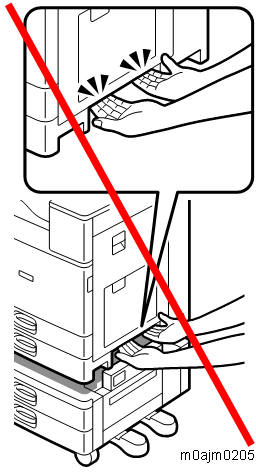

Do not lift by holding the area shown below. Doing so may damage the exterior, and you may drop the printer.

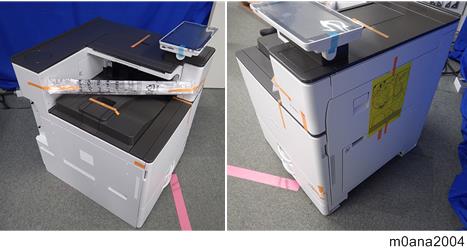

- Remove the orange tape and retainers on the outside.
- Open the front cover.

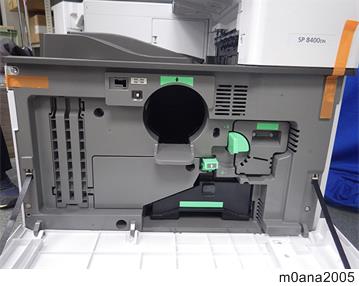

Remove the orange tape.
Close the front cover.
- Pull out the 1st/2nd paper feed trays, and then remove the orange tape.
