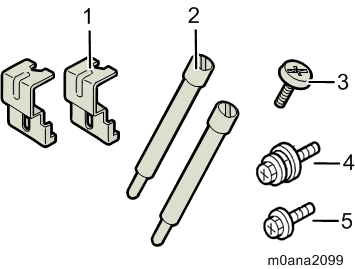

No. | Descriptions | Q’ty | Remarks |
|---|
1 | Securing Bracket | 2 | |
2 | Long Screws (M4 × 10) | 2 | |
3 | Coin Screw (M4 × 10) | 1 | |
| 4 | Hexagonal Bolt | 1 | Not used in this machine |
| 5 | Screw (M4 × 10) | 2 | Not used in this machine |
| - | Caution sheet (screw) | | |
