- Remove the main power switch cover. (Main Power Switch Cover)

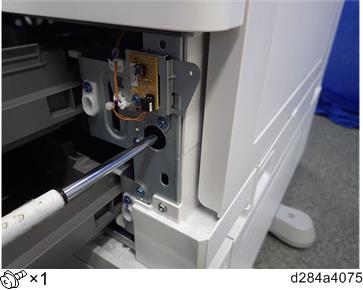

- Inserting a driver through the frame hole, remove the screw of the temperature/humidity sensor.

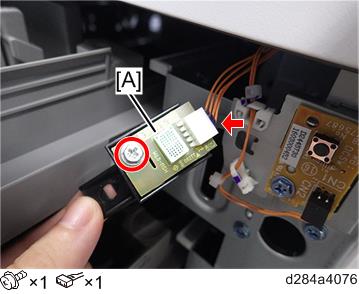

- Remove the temperature/humidity sensor [A].
