If necessary, adjust the registration for the paper feed tray.

Print the test pattern (14: Trimming Area) with SP2-109-003 for the registration adjustment. For details, see Test Pattern Printing.

1-002-001Side-to-Side RegistrationBy-pass Tray[-4 to 4 / 0 / 0.1mm]
1-002-002Side-to-Side RegistrationPaper Tray 1[-4 to 4 / 0 / 0.1mm]
1-002-003Side-to-Side RegistrationPaper Tray 2[-4 to 4 / 0 / 0.1mm]
1-002-004Side-to-Side RegistrationPaper Tray 3[-4 to 4 / 0 / 0.1mm]
1-002-005Side-to-Side RegistrationPaper Tray 4[-4 to 4 / 0 / 0.1mm]
1-002-006Side-to-Side RegistrationDuplex[-4 to 4 / 0 / 0.1mm]
1-002-007Side-to-Side RegistrationLarge Capacity Tray[-4 to 4 / 0 / 0.1mm]

  • To enter the SP mode, there are two ways to display the number keyboard on screen;
  1. Press the "Printer (Classic)" icon on the home screen.

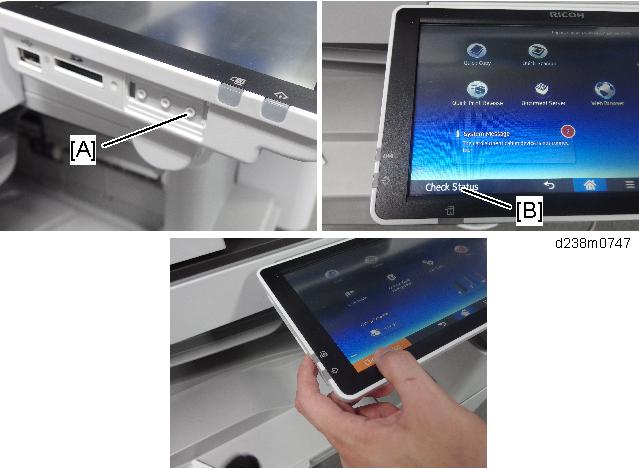

  2. Press and hold the button [A] located at the left side of the operation panel and "Check Status [B]" at the same time, until the number keyboard is displayed.


  • For details of the key code to enter the SP mode, ask your supervisor.

SP descriptions
  • SP1-002 (Side-to-Side Registration)

Adjusts the side-to-side registration by changing the laser main scan start position for each mode and tray.

Increasing a value: The image is moved towards the rear edge of the paper.

Decreasing a value: The image is moved towards the front edge of the paper.
