SP 8400DN
Replacement and Adjustment
Fans/Filters
Odor Filter

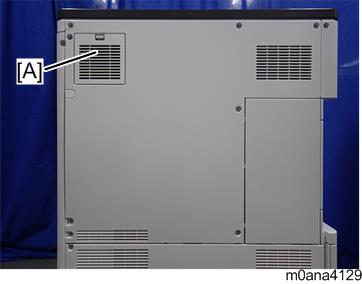

Remove the odor filter box [A].
EU/AA:

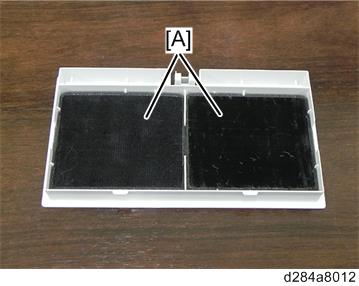

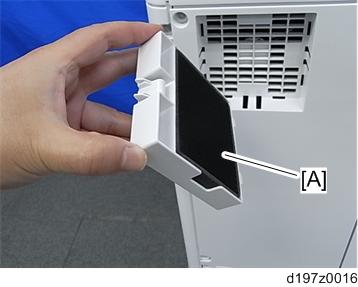

Remove the odor filter [A].
EU/AA:
