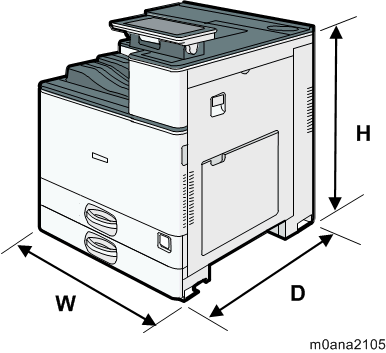

Main frame
W x D x H: 587 x 653 x 720 mm (23.2 x 25.7 x 28.3 inches)
With peripherals

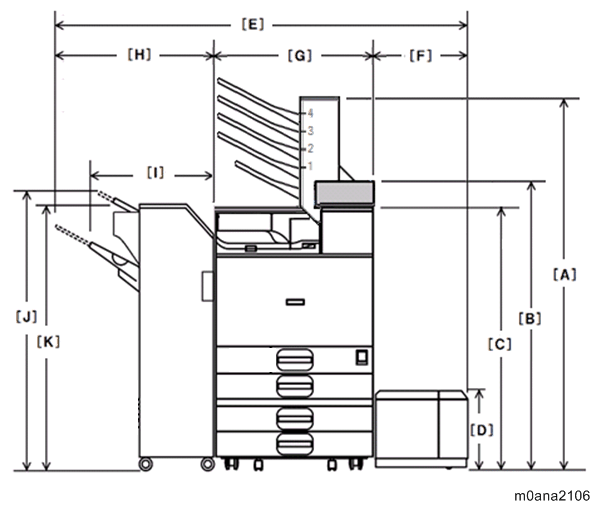

Configuration 1:
SP 8400DN with Mail Box CS3010, Bridge Unit BU3070, Finisher SR3210, Paper Feed Unit PB3240, and LCIT RT3030.
A | 1569.3mm (61.78") | G | 587mm (23.11") |
B | 1105.3mm (43.51") | H | When the 1000-sheet finisher is installed: 575 to 658mm (22.63 to 25.98") When the 3000-sheet finisher is installed: 657 to 756mm (25.86 to 29.76") |
C | 967mm (38.07") | I | When the 1000-sheet finisher is installed: 575mm (22.63") When the 3000-sheet finisher is installed: 657mm (25.86") |
| D | 290mm (11.41") | J | When the 1000-sheet finisher is installed: 1045mm (41.14") When the 3000-sheet finisher is installed: 1028mm (10.47") |
| E | 1683mm (66.25") | K | When the 1000-sheet finisher is installed: 986mm (38.81") When the 3000-sheet finisher is installed: 973mm (38.30") |
| F | 340mm (13.38") | - | - |

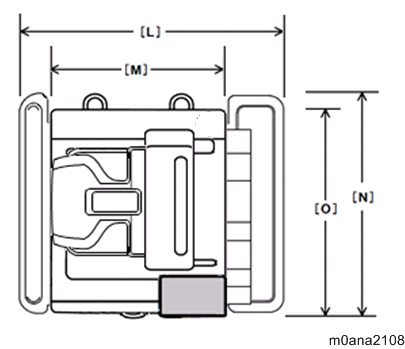

Configuration 2:
SP 8400DN with Mail Box CS3010 (with stabilizers) and Paper Feed Unit PB3240.
L | 917mm (36.10") |
M | 587mm (23.11") |
| N | 765mm (30.11") |
| O | 653mm (25.71") |

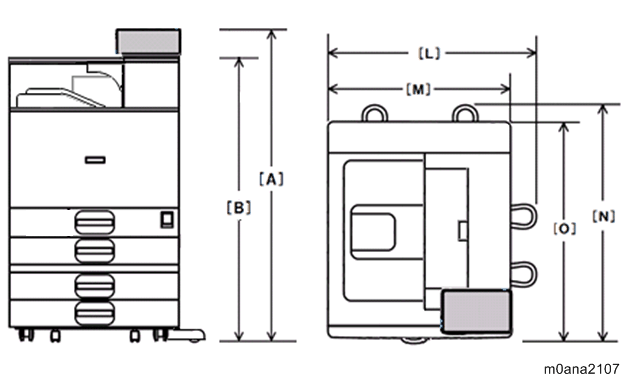

Configuration 3:
SP 8400DN with Paper Feed Unit PB3240.
A | 1105.3mm (43.51") | L | 668mm (26.29") |
B | 967mm (38.07") | M | 587mm (23.11") |
- | - | N | 738mm (29.05") |
- | - | O | 653mm (25.71") |
