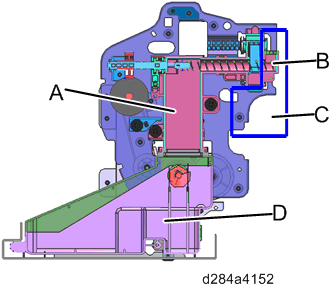

| A: Silicone Pipe | C: PCDU |
| B: Waste Toner Transfer Coil | D: Waste Toner Bottle |
The waste toner transfer coil transfers waste toner from the PCU to the waste toner bottle via a silicone pipe. The silicone pipe is part of the main machine.
| A: Silicone Pipe | C: PCDU |
| B: Waste Toner Transfer Coil | D: Waste Toner Bottle |
The waste toner transfer coil transfers waste toner from the PCU to the waste toner bottle via a silicone pipe. The silicone pipe is part of the main machine.
