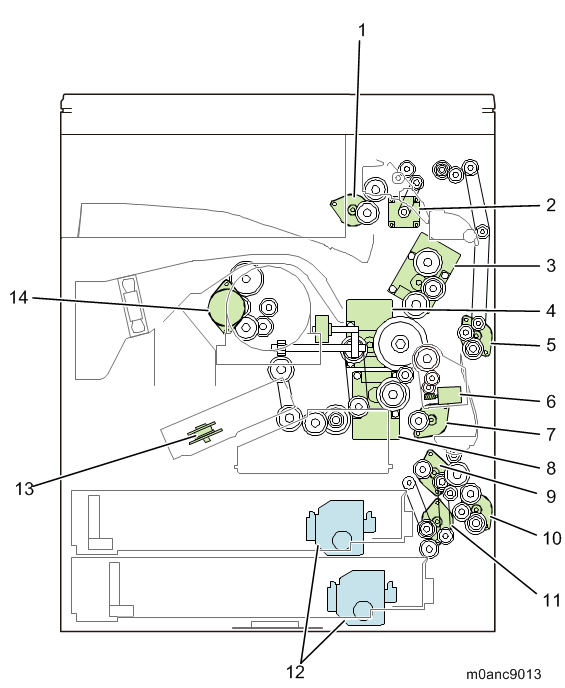

No. | Description | No. | Description |
|---|---|---|---|
1 | Paper exit motor | 8 | Development motor |
2 | Reverse motor | 9 | Vertical transport motor |
3 | Fusing motor | 10 | Duplex/bypass motor |
4 | Drum/waste toner motor | 11 | Paper feed motor |
5 | Duplex entrance motor | 12 | Paper feed tray lift motor |
6 | Transfer roller contact motor | 13 | Polygon motor |
7 | Registration motor | 14 | Toner supply motor |
