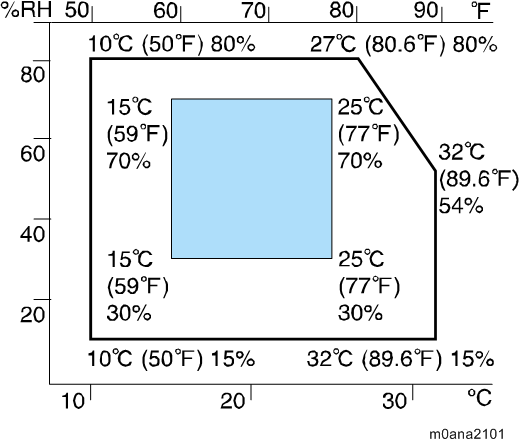

- Temperature Range: 10 °C to 32 °C (50 °F to 89.6 °F)
- Humidity Range: 15% to 80% RH
- Ambient Illumination: Less than 1,500 lux (do not expose to direct sunlight.)
- Ventilation: Room air should turn over at least 3 times/hr/person
- Ambient Dust: Less than 0.10 mg/m3
- Avoid an area which is exposed to sudden temperature changes. This includes:
- Areas directly exposed to cool air from an air conditioner.
- Areas directly exposed to heat from a heater.
- Do not place the machine in an area where it will be exposed to corrosive gases.
- Do not install the machine at any location over 2,000 m (6,500 ft.) above sea level. (In NA, it can be installed only up to 2,500m (8,202 ft.))
- Place the copier on a strong and level base. (Inclination on any side should be no more than 5 mm.)
- Do not place the machine where it may be subjected to strong vibrations.
