- When a finisher is installed, the feeler does not need to be pulled out.

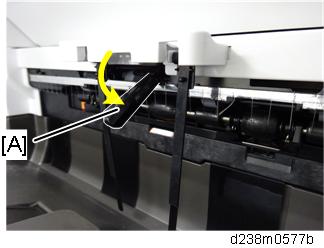

- Pull the sensor feeler [A] out.
