• Make sure to shut down and reboot the machine once before exporting the SMC sheet data. Otherwise, the latest settings may not be collected when the SMC is exported.



  1. Turn OFF the main power.
  2. Insert the SD card into the operation panel SD-card slot, and then turn OFF the main power.
  3. Enter SP mode.
  4. Select "System SP".
  5. Select SP5-992-001 (SP Text Mode).

  6. Select a detail SP number shown below to save data on the SD card.
    SP5-992-xxx (SP Text Mode)

    Detail No.

    SMC Categories to Save

    001

    All (Data List)

    002

    SP (Mode Data List)

    003

    User Program

    004

    Logging Data

    005

    Diagnostic Report

    006

    Non-Default

    007

    NIB Summary

    024

    SDK/J Summary

    025

    SDK/J Application Info

    026

    Printer SP

    027

    Smart Operation Panel SP

    028

    Smart Operation Panel UP

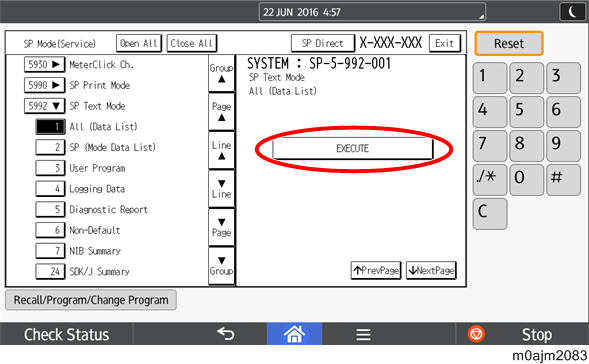

  7. Press [EXECUTE].

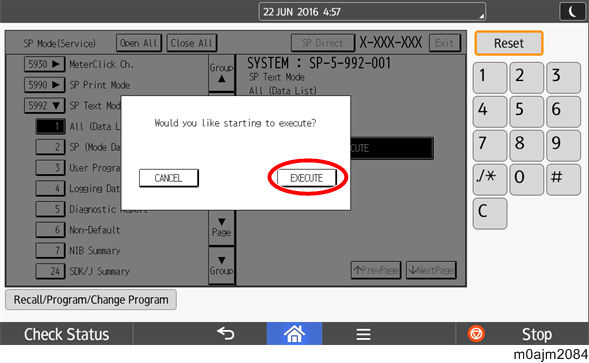

  8. Press [EXECUTE] again to start. Press [CANCEL] to cancel the saving.

  9. "It is executing it" is shown on the screen while executing.
    Wait for 2 to 3 minutes until "Completed" is shown.

    • The SMC list saving may take from 2 to 3 minutes to complete.
    • Press [CANCEL] to abort executing.

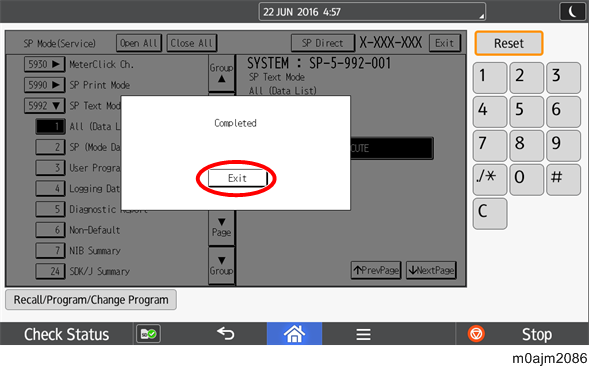

  10. After "Completed" is displayed, press [Exit].
  11. Exit the SP mode.
