"Move Exec" (SP5-873-001) lets you move application programs from the original SD card to another SD card.

  • When merging SD cards, any type of SD card can be used.

  1. Turn the OFF the main power.

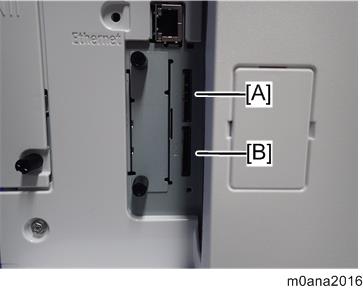

  2. Remove the SD card slot cover [A]. (coin screw x 1)
  3. Set the destination SD card (SD card where data is to be stored) in Slot 1 [A], and set the original SD card (SD card from which data is to be transferred) in Slot 2 [B].
  4. Turn ON the main power, and press [ENTER] in SP5-873-001 (SD Card Appli Move: Move Exec).

  5. When a confirmation screen is displayed, press [ENTER] (it takes about 2 - 3 minutes).

    • If [CANCEL] is pressed, the display returns to the previous screen.
    • Note that if the power supply is turned off, a panel operation is performed, or the cover is opened during merge, it will result in a malfunction.

  6. When merge is complete, and the following screen is displayed, press [CLOSE].

    • If the process is terminated abnormally, perform the merge in SP mode again.
    • If the capacity of the destination SD card is insufficient, the merge operation cannot be performed.

  7. Press [END] twice.

  8. Turn OFF the main power.
  9. Remove the empty SD card after transfer from Slot 2.
  10. Reattach the slot cover [A]. (coin screw x 1)
  11. Turn ON the main power, output the system setting list, and check that the options are recognized correctly.
