An IC card reader and a USB cable (recommended length: 800 mm) are not included with this unit. The customers must obtain these themselves, and the technicians must install them.

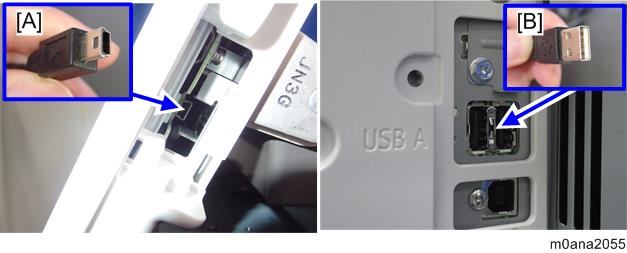

The installation procedure depends on whether the USB type is a USB mini [A] or standard type A [B] connector.
In the case of USB mini, connect directly to the control panel (in the same way as for the NFC Card Reader Type P11); in the case of standard type A, connect to the machine’s interface connector.
