Install stabilizers according to the following table.
| Configuration | Securing brackets | Right stabilizer | Left stabilizer |
|---|---|---|---|
Main unit only
| Not required | Not required | Not required |
With 2-tray PFU (or Tandem Tray)
| Required | Required | Required |
With 2-tray PFU (or Tandem Tray) and Side LCIT
| Required | Not required (Cannot be installed because it interferes with the LCIT.)
| Required |
With Finisher
| Required | Required | Not required (The connection between the main unit and the finisher functions as a stabilizer.) |
With Internal Multi-fold Unit
| Required | Required | Required |
With Finisher and Side LCIT
|
Required | Not required (Cannot be installed because it interferes with the LCIT.) | Not required (The connection between the main unit and the finisher functions as a stabilizer.) |
- Remove the rear lower gap cover [A]. (hook×2)

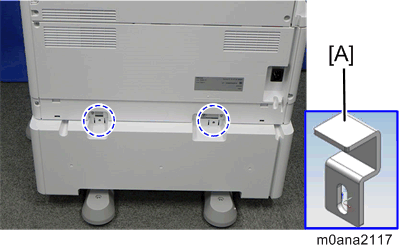

- Remove the brackets that secure the optional paper feed unit to the machine, and replace them with the securing brackets [A] provided with the mailbox.
- Use the screws from the removed brackets.
- Use the screws from the removed brackets.
Reattach the rear lower gap cover.

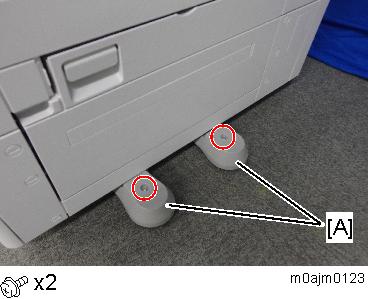

Remove the two covers for the stabilizers [A] at the right of the paper feed unit.

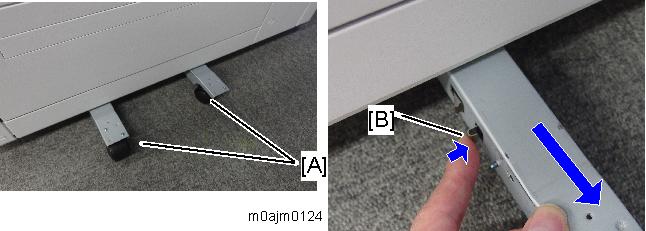

Remove the two arms [A].
Pull out the arms while pressing the lock [B].

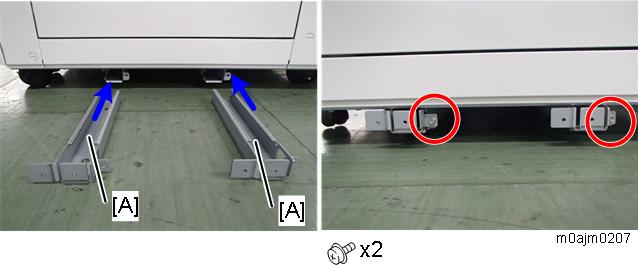

Insert the two right arms [A] (provided with the mailbox) where the old ones went (M4x6).

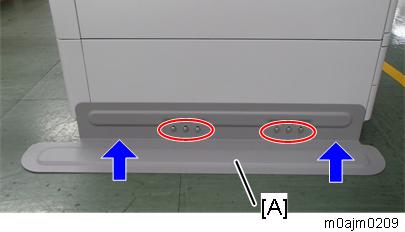

Place the right stabilizer [A] on a level floor, push it against the paper feed unit, and tighten the arms and stabilizer together (coin screw x 4).

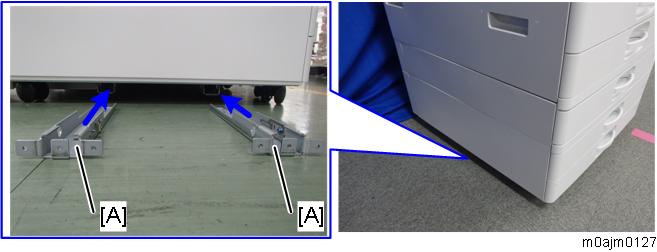

- Insert the two left arms [A] until they stop.

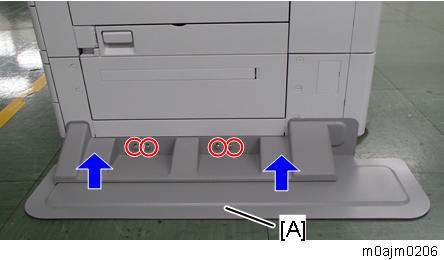

Place the left stabilizer [A] on a level floor, push it against the paper feed unit, and tighten the arms and stabilizer together (coin screw x 6).

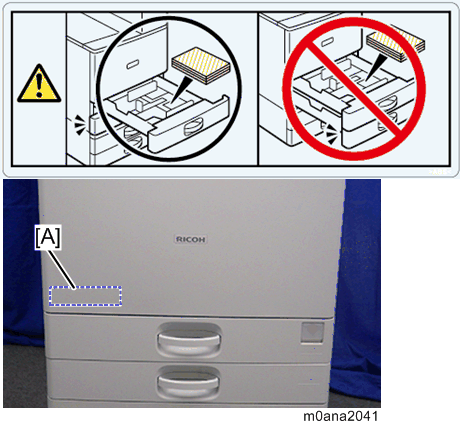

Attach the caution decal at the position [A]. Two decals come with the accessories. One of them is for use with another model, so make sure you attach the correct one.
The decal cautions users not to pull out more than one tray at the same time. Be sure to instruct users to pull out the paper feed trays one at a time when using the machine with the mailbox. Pulling out more than one paper feed tray at the same time may cause the machine to overbalance and topple forward.

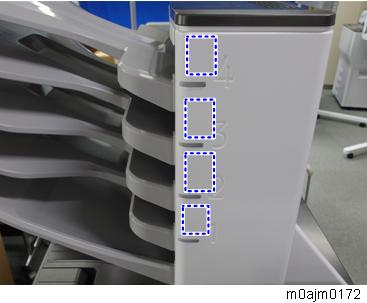

Give the tray decals to the customer.
The customer will write down information such as department name or location on the decals and attach them to the front cover.
