To secure space for installing Mail Box CS3010, move the operation panel to the front. Also, pull out the USB cable connected to the operation panel as far as needed for the move.
Release the USB cable and the harness of the operation panel, and secure sufficient length to move the operation panel.
When installing the Mail Box CS3010 and the Attention Light AL3000 at the same time, install the attention light (Installation Procedure) after doing step 1.
Then install the mail box.
Reattach the covers in the following order: top rear cover, rear cover, rear left cover (coin screws).

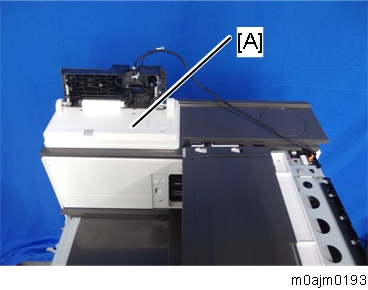

Remove the operation panel upper cover [A].
Remove the operation panel [A] from the machine while keeping the USB cable connected to the machine.
- Place the operation panel [A] on the top rear cover with LCD facing down.
- Open the inverter guide cover [A], and remove the inverter guide cover and its exterior cover.
Lift the exterior cover from the screw bosses [B], and then slide the inverter module in the direction of the blue arrow and remove it.

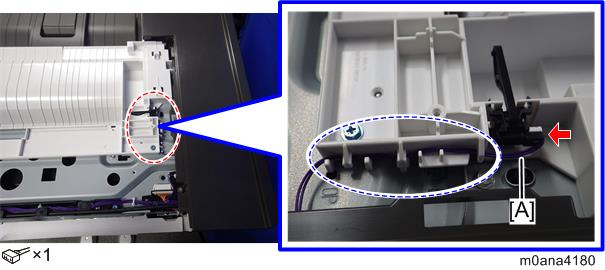

- Release the harness [A] of the inverter guide cover sensor from the harness guide.
- Remove the inverter guide [A].

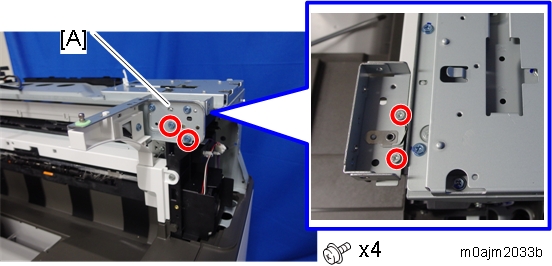

- Remove the inverter guide bracket [A].

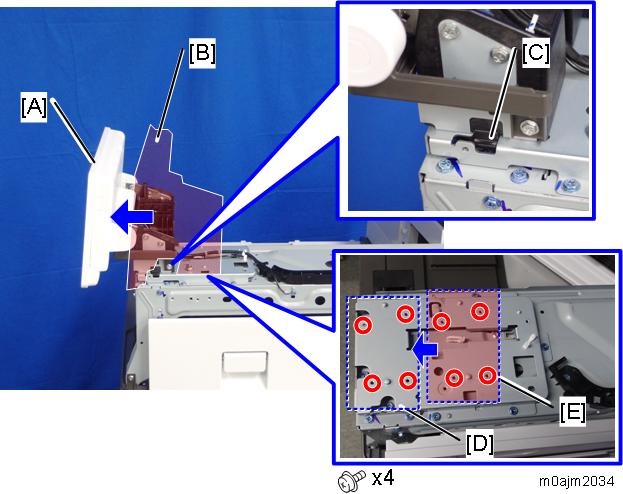

- Attach the operation panel more forward than before.
[A]: Installed position: After moving
[B]: Installed position: Before moving
[C]: Adjust the tab at the base of the operation panel to the indicated position
[D]: Position of screw holes for operation panel securing brackets: After moving
[E]: Position of screw holes for operation panel securing brackets: Before moving

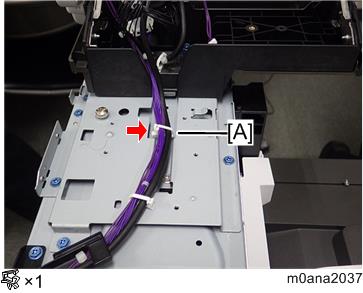

Fasten the USB cable and the harness at the position [A] using the supplied clamp.

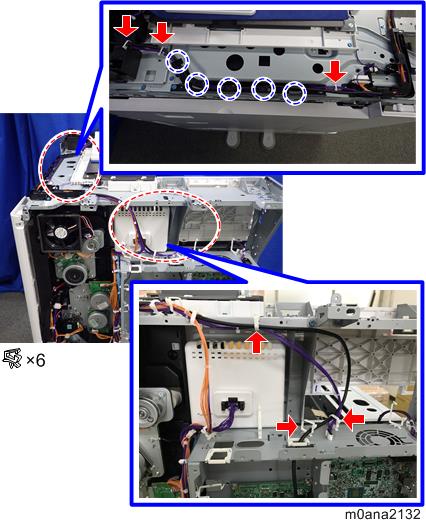

Reattach the harness.

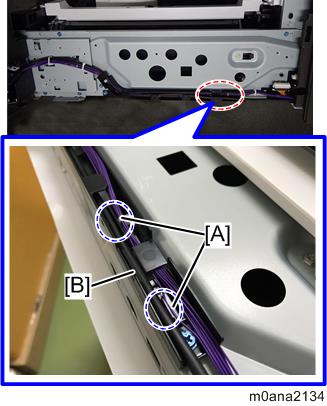

Pass all the harnesses [A] below the guide [B].

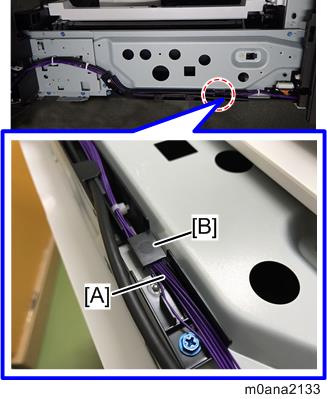

Pass the USB cable [B] between the ribs at the indicated locations ([A]).
Check that the harness [A] is not outside of the guide.
If the harness is outside of the guide, the harness may become damaged.
