• When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.

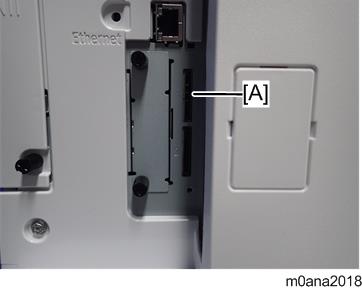

    1. Remove the SD card slot cover [A] (Coin screw x 1).
    2. Insert the XPS SD card in SD card slot 1 [A: Upper Slot].
    3. Turn ON the main power.
    4. Print out the "Configuration Page", and then check if this option is correctly recognized.
      • User Tools > Machine Features > Printer Features > List/Test Page > Configuration Page
