1. Remove the main power switch cover. (Main Power Switch Cover)
  2. Open the right cover.
  3. Remove the right rear cover. (Right Rear Cover)
  4. Remove the rear lower cover. (Rear Lower Cover)

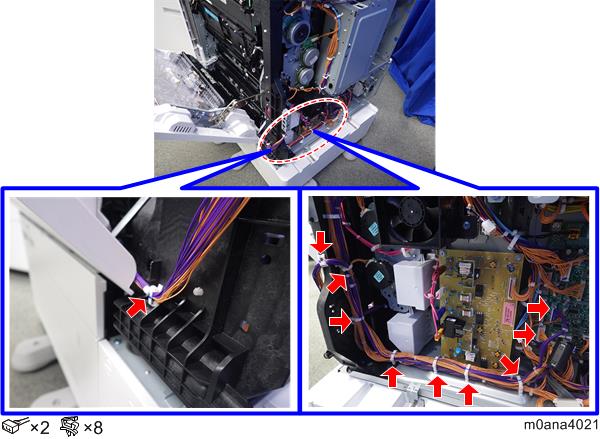

  5. Remove clamps and connectors.
  6. Release the right cover arms [A] [B]. (×2)

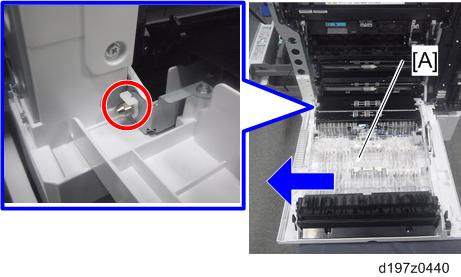

  7. Slide to the left and remove the right cover [A]. (×1)
