• The main machine weighs approximately 57 kg (125.7 lb.). The printer should always be lifted by at least four people.
  • The machine should be held at the correct locations and lifted gently. If it is lifted without care, handled carelessly or dropped, it may result in an injury.
  • When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.
  • Be sure to join the machine to the paper feed unit so as to prevent equipment from falling over. If they are not connected, they may move and fall over, resulting in injury.

  1. Remove the orange tape and retainers.
  2. Remove the accessories (fixing screws, etc.) from the package.

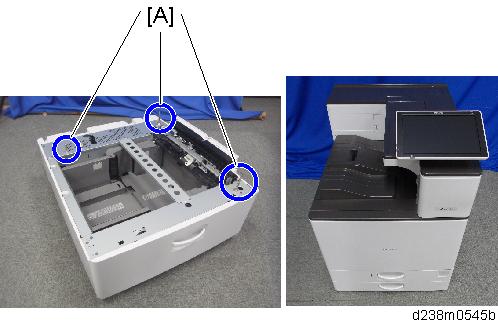

  3. Holding the grips on the machine, align the machine with the locating pins [A], and place the machine on the paper feed unit.

    • When you lift the machine, hold the correct locations [A].
    • Do not hold any other parts of the machine when lifting it, because this may cause the machine to deform.
    • Do not put the machine down on the paper feed unit as a temporary resting place. This may cause the paper feed unit to deform. Always connect the machine and paper feed unit properly.

  4. Pull out the 2nd paper feed tray.

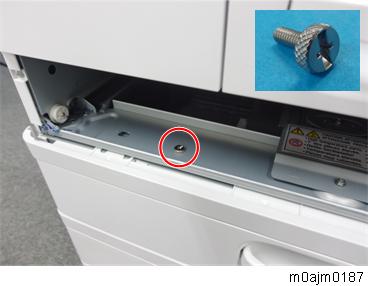

  5. Fix the machine to the feed unit (coin screw x1: M4x10).
    Tighten the screw firmly using a coin.

  6. Slide the tray carefully into the main unit until it stops.

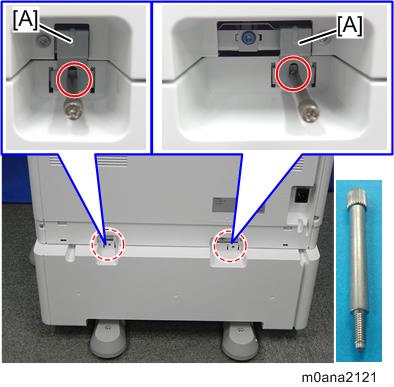

  7. Attach the securing brackets [A] to two positions on the left and right at the rear of the machine (long screw x2: M4x10).
    Tighten the screws firmly using a coin.

  8. Attach the decals as shown below.

    [A]: Tray number decal
    [B]: Paper size decal


    • The tray number decal and paper size decal are packaged together with the machine.

  9. Lock the casters of the paper feed unit.
  10. Attach the rear lower gap cover [A].

  11. Connect the power cord to the machine.

    • The stabilizers are attached to the LCIT when it is shipped. Do not remove any of them.


  12. Turn ON the main power.

  13. Load the paper, and check that the size of paper loaded in the paper feed tray is displayed on the operation panel.

  14. Adjust the registration for the paper feed unit.
    SP1-002-004 (Side-to-Side Registration Paper Tray 3)
SP descriptions
  • SP1-002 (Side-to-Side Registration)
    Adjusts the side-to-side registration by changing the laser main scan start position for each mode and tray.
    Increasing a value: The image is moved towards the rear edge of the paper.
    Decreasing a value: The image is moved towards the front edge of the paper.
