1. Remove the bypass tray. (Bypass Tray)

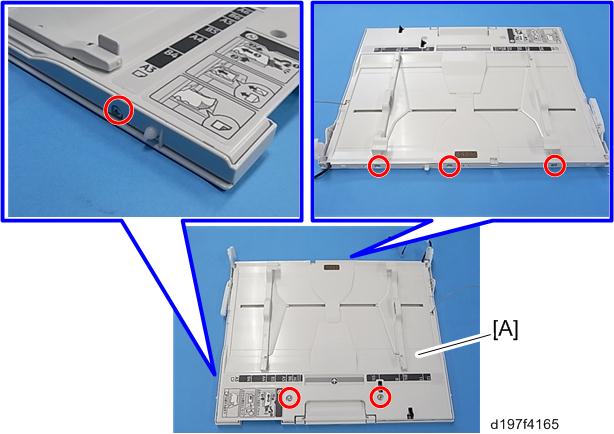

  2. Remove the six screws on the bypass tray [A]. (×6).

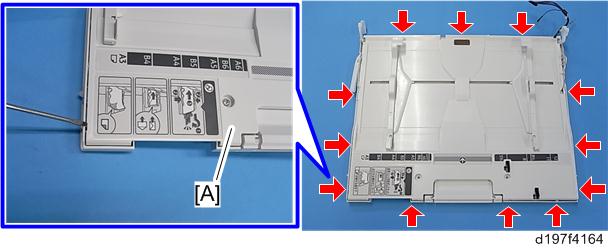

  3. Release the hooks around the bypass tray [A].

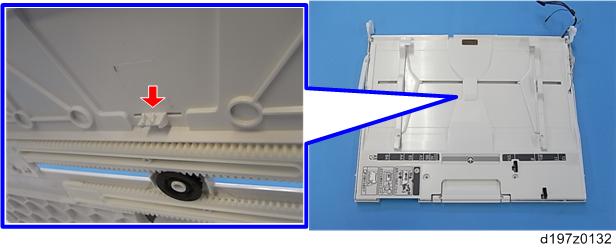

    • There is a hook in the tray cover. Be careful not to damage it during removal or installation.

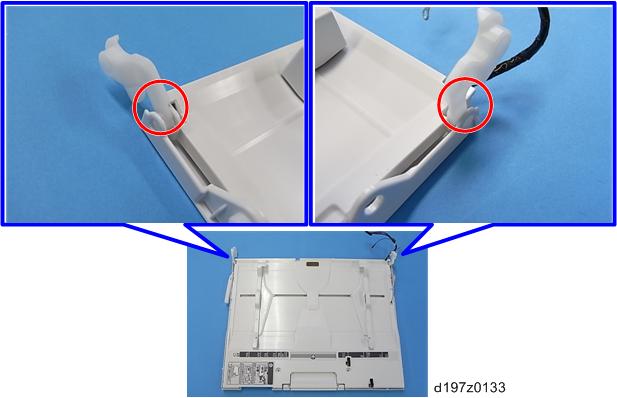

  4. Release the links.

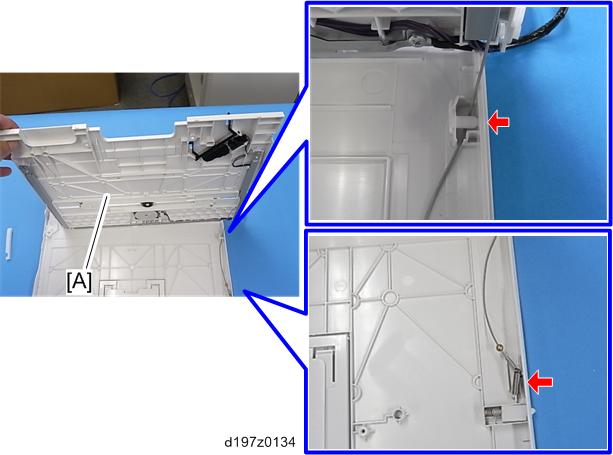

  5. Remove the bypass tray upper cover [A]. (pin x 1, x1)

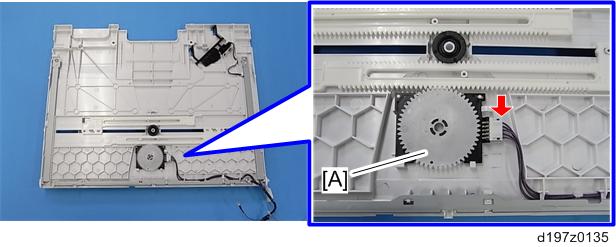

  6. Remove the bypass width sensor [A]. (×1, x2)

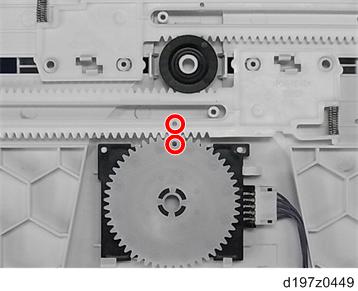

    • When installing, the holes must align as shown below.
