1. Remove the paper exit unit. (Paper Exit Unit)

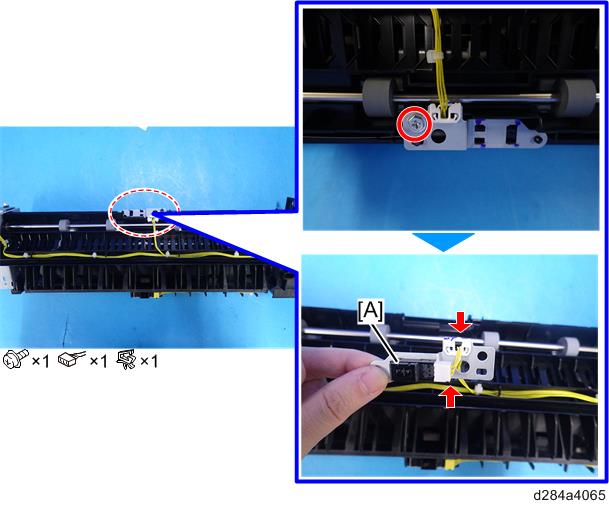

  2. Remove the reverse sensor [A].

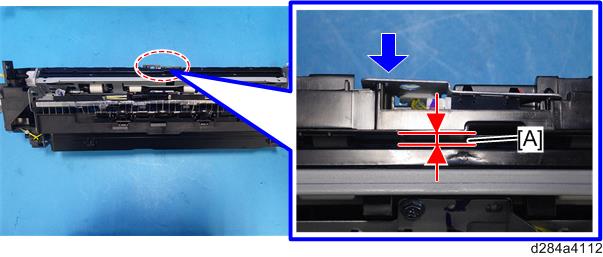

    When attaching the reverse sensor, if you screw too tightly in the direction of the blue arrow, it may cause the gap between the guide plates [A] to be too narrow, resulting in paper jams. Make sure that there is a gap [A] of 3mm or more after you fasten the screw.
