- Remove the top right cover. (Top Right Cover)
- Remove the rear cover. (Rear Cover)

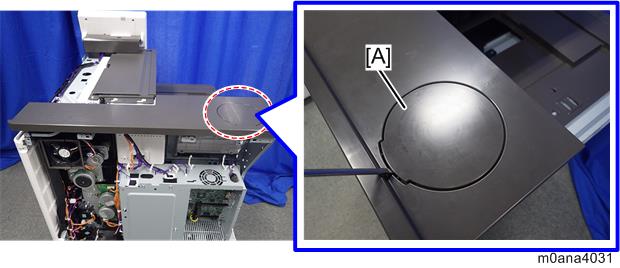

- Using a flat-headed screwdriver, remove the cover [A].

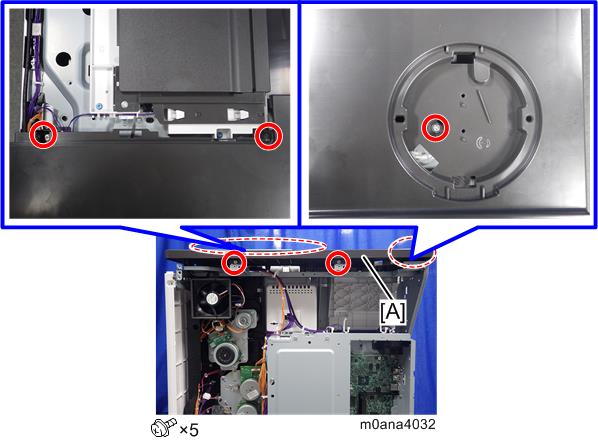

- Remove the top rear cover [A].
