The paper transported from the fusing unit is changed over by the junction gate in the “machine paper exit/bridge unit” direction or the “reverse tray/1 bin unit” direction.

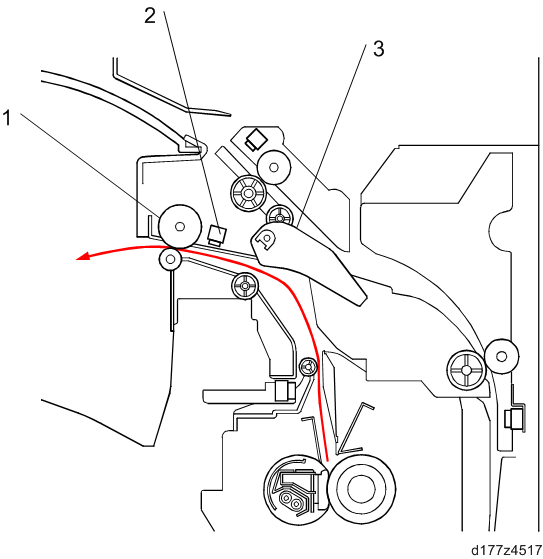

Machine paper exit/bridge unit direction
- The registration sensor switches ON.
- The paper exit motor switches ON (CCW).
- When the rear edge of the paper leaves the paper exit roller, the paper exit motor switches OFF.
No. | Description |
|---|---|
1 | Paper exit roller |
2 | Paper exit sensor |
3 | Junction gate |

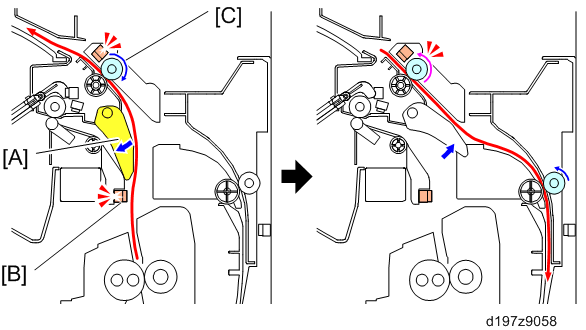

Reverse tray/1 bin unit direction
- Registration sensor switches ON.
- The reverse motor switches ON (CCW).
- Before the leading edge of the paper reaches the junction gate [A], the junction gate moves in the reverse tray/1 bin unit direction.
* If the junction gate is in the reverse tray/1 bin unit direction, the junction gate is not changed over. - After the trailing edge of the paper has left the fusing exit sensor [B], the exit junction solenoid switches OFF.
- When the trailing edge of the paper leaves the reverse roller [C], the reverse motor switches OFF.
