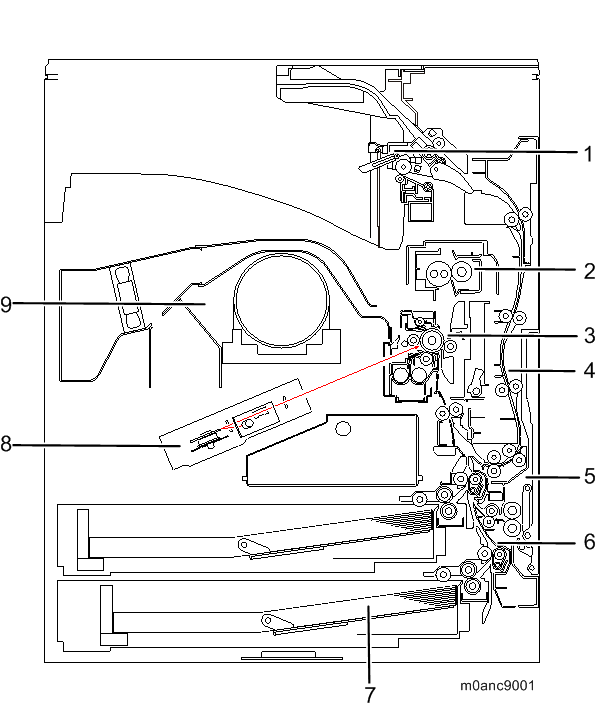

No. | Description | No. | Description |
|---|
1 | Paper Exit Unit | 6 | Vertical Transport |
2 | Fusing Unit | 7 | Paper Feed Unit |
3 | OPC Drum | 8 | Laser Unit |
4 | Duplex Unit | 9 | Toner Supply Unit |
5 | Bypass Tray Unit | | |
