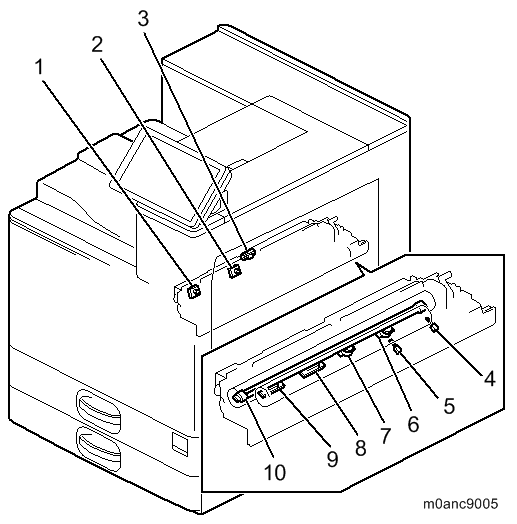

No. | Description | No. | Description |
|---|---|---|---|
1 | Fusing thermopile (End) | 6 | Thermostat (End) |
2 | Fusing thermopile (Center) | 7 | Thermostat (Center) |
3 | Fusing exit sensor | 8 | Fusing roller temperature sensors (Center) |
4 | Pressure roller temperature sensor (End) | 9 | Fusing roller temperature sensors (End) |
5 | Pressure roller temperature sensor (Center) | 10 | Fusing lamp |
