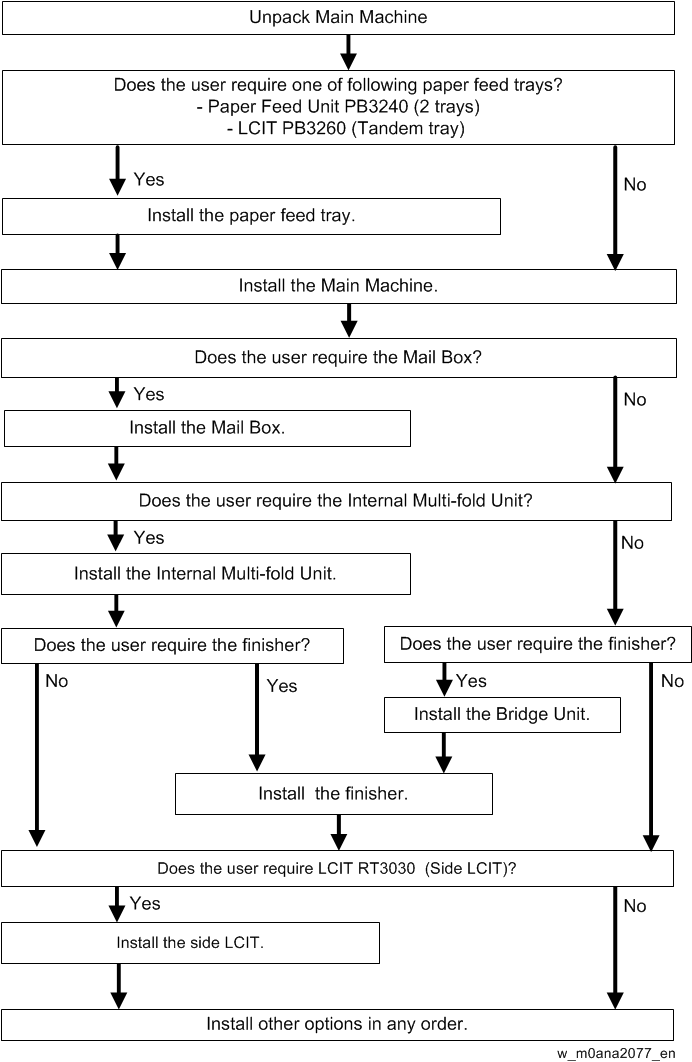

When installing the Internal Multi-fold Unit FD3000 and the Mail Box CS3010 at the same time, first install the base plate [A] of the internal multi-fold unit, then install the mailbox [B]. Then, finish installing the internal multi-fold unit.
Put the machine on the paper feed tray (2 trays) or the LCT (tandem tray) first, then install the machine and other options.
You need Paper Feed Unit PB3240 (M494) or LCIT PB3260 (M496) to align the paper transport path if you want to install the following peripherals.
- Finisher SR3210 (D3B8-17)
- Finisher SR3230 (D3BA-17)
- LCIT RT3030 (D696-17, -27)
