- Remove the transfer unit. (Transfer Unit)

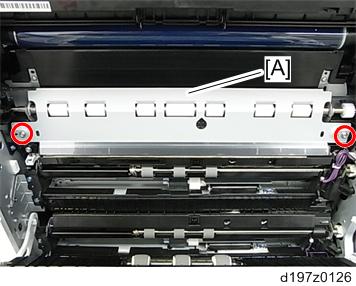

- Remove the inner guide bracket [A]. (
×2)

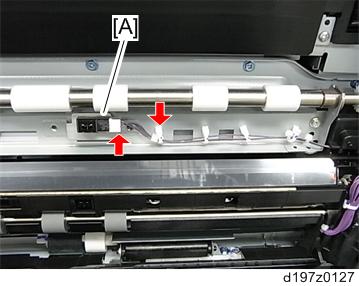

- Remove the registration sensor [A] (hooks,
×1,
x1).
