• When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.
  • Do not put your hand into the controller box. It will result in a malfunction or injury.
  • Before doing any work, touch a metal object to discharge static electricity from the body. There is a possibility that the IEEE 1284 Interface Board may malfunction due to static electricity.

  1. Remove the slot cover. (coin screw x2)

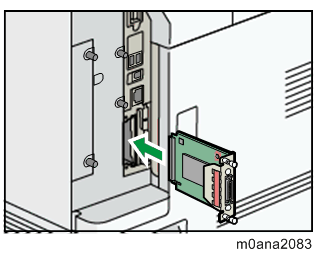

  2. Insert the IEEE 1284 Interface Board into the I/F slot. (coin screw x2)
  3. Turn ON the main power.
  4. Print out the "Configuration Page", and then check if this option is correctly recognized.
    • User Tools > Machine Features > Printer Features > List/Test Page > Configuration Page

  • The customer should keep the slot covers which were removed.
