- Remove the inner cover. (Inner Cover)

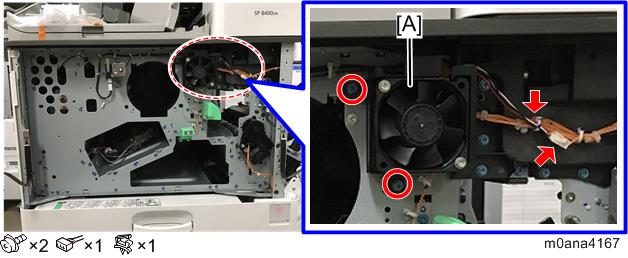

- Remove the fan assembly [A].

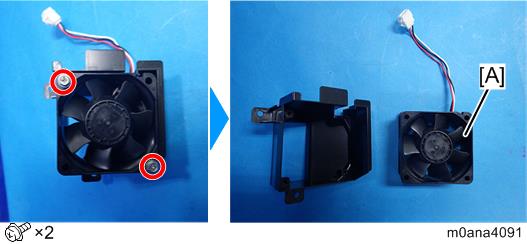

- Remove the front development cooling fan [A].
