• When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.

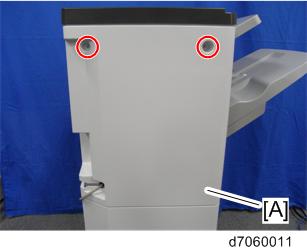

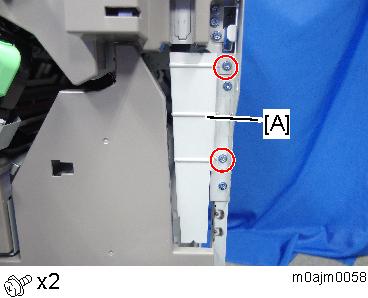

  1. Remove the rear upper cover [A] ( ×2)

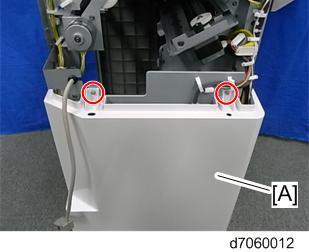

  2. Remove the rear lower cover [A] ( ×2)
  3. Remove the plate [A].

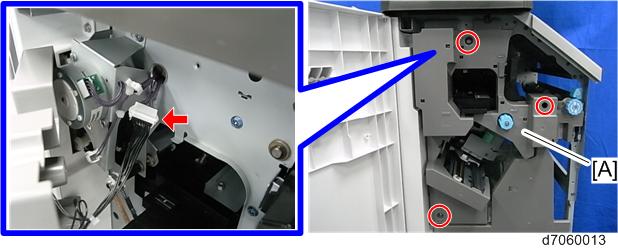

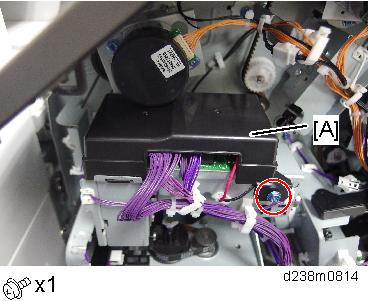

  4. Remove the inner cover [A] ( ×3, ×1)

    • There is a connector on the back of the inner cover.

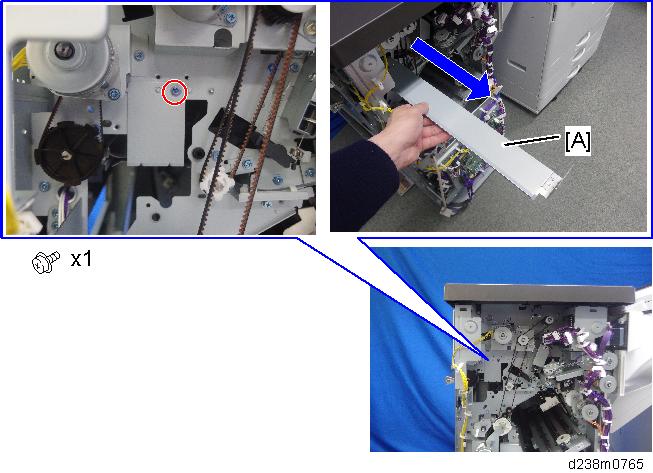

  5. Remove the punch guide plate [A].

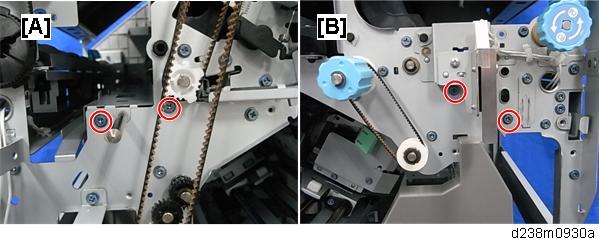

  6. Attach the punch unit stay [A] (×4).

    [A]: Rear, [B]: Front

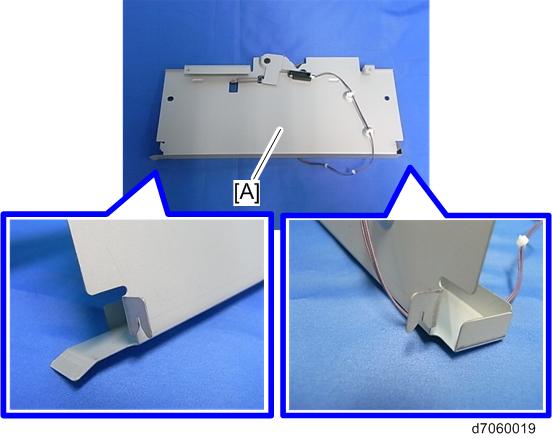

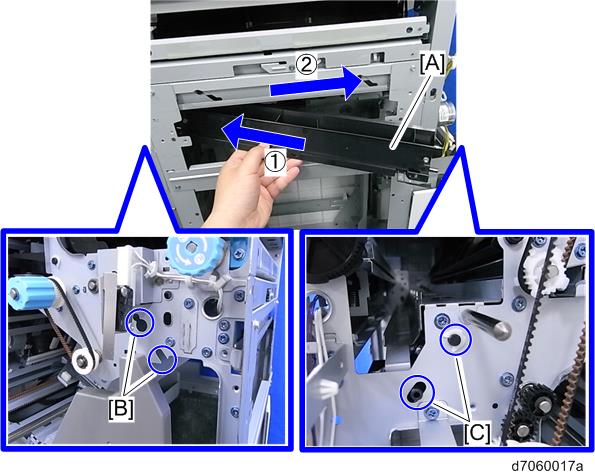

  7. Attach the punch waste paper guide [A] (×1).

    • After inserting the front tab of the punch waste paper guide into the frame [B] of the finisher, insert the rear tab into the frame [C].

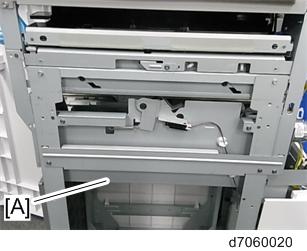

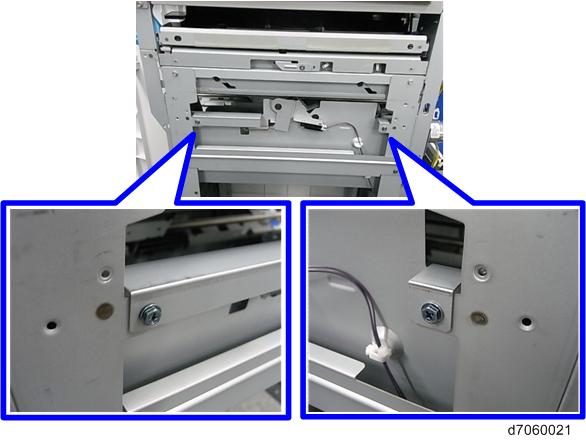

  8. Attach the hopper bracket [A], inserting from the outside frame of the finisher. (×2, 2 hooks)

    • Hook the hooks of the hopper bracket [A] onto the back side of the frame.

    • Hook the upper frame of the hopper bracket onto the outside frame of the finisher.

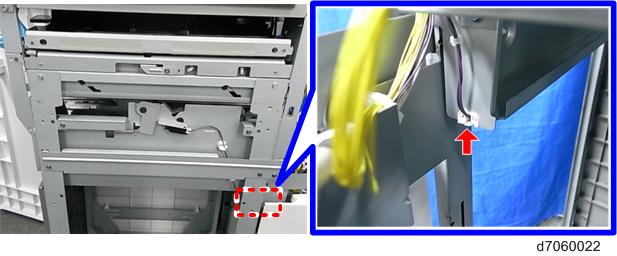

  9. Fix the harness of the hopper sensor. ( ×1)

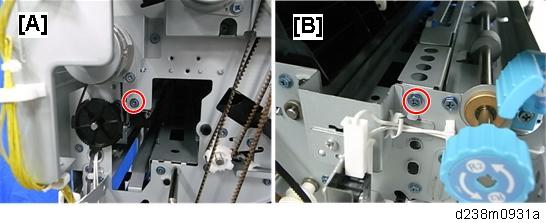

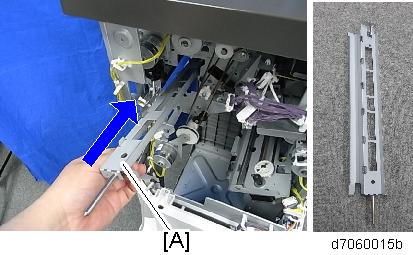

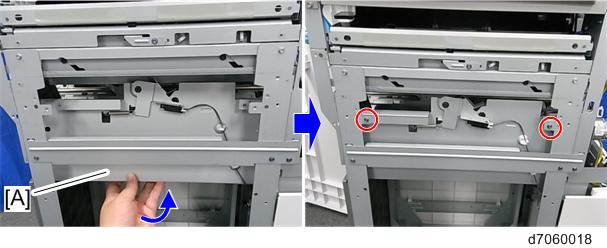

  10. Attach the registration guide plate [A]. ( ×2)

    [A]: Rear, [B]: Front

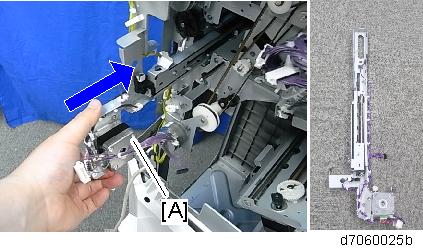

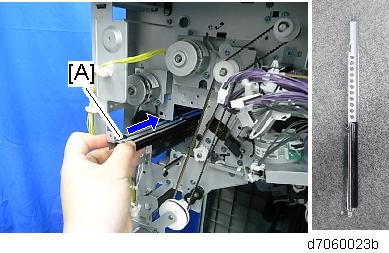

  11. Attach the side-to-side detection unit [A]. ( ×2)

    • Insert the front pins of the side-to-side detection unit into the holes of the frame.

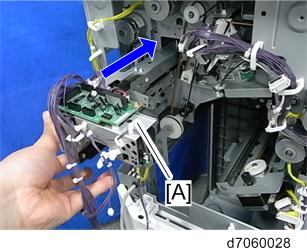

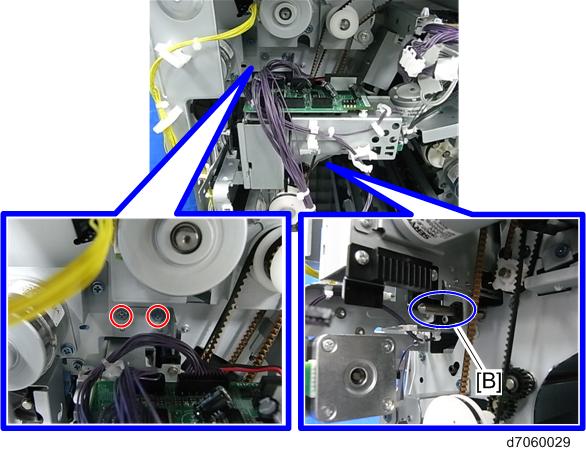

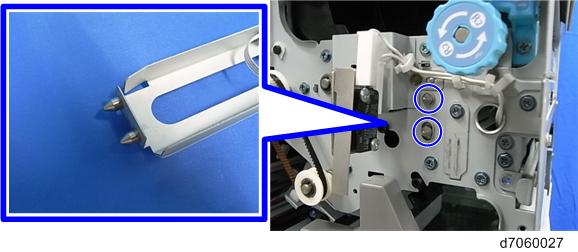

  12. Attach the punch unit [A]. ( ×2)

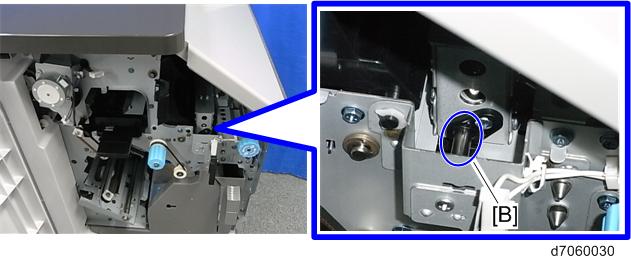

    • After inserting the pins [B] of the punch unit stay into the front and rear holes of the punch unit, fix the punch unit with two screws.
    • Rear
    • Front

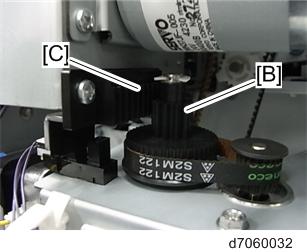

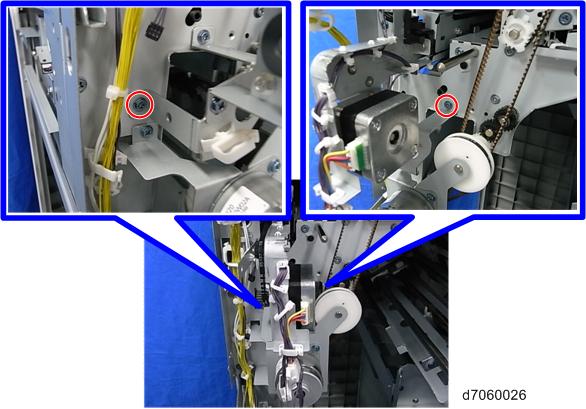

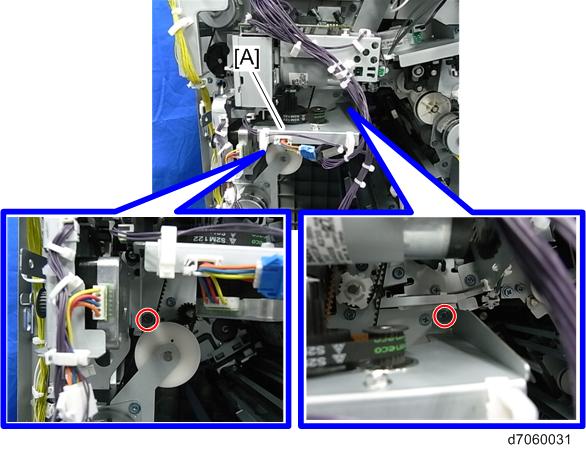

  13. Attach the punch unit movement motor unit [A]. ( ×2)

    • Engage the gear [B] of the punch unit movement motor unit with the rack [C] of the punch unit.

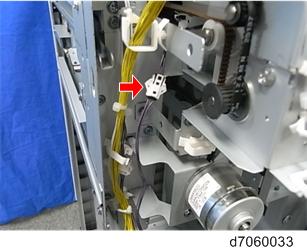

  14. Connect the harness of the hopper sensor to the connector of the finisher.(×1)

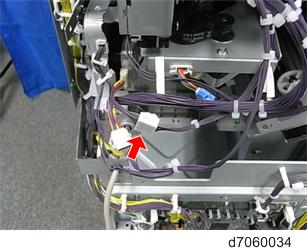

  15. Connect the harness of the punch unit to the connector of the registration drive unit.(×1)

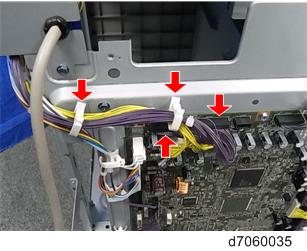

  16. Connect the harness of the punch unit to the main board, and then clamp it. (×2, ×2)

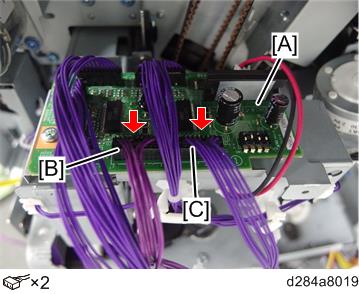

  17. Connect the harness [B] of the punch unit movement motor unit and the harness [C] of the side-to-side detection unit to the punch unit board [A].
  18. Attach the supplied cover [A] to the punch unit board.

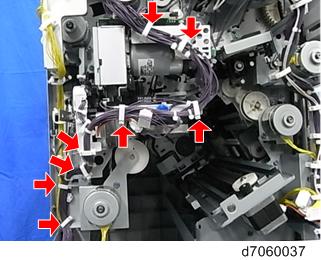

  19. Clamp all the harnesses of the punch unit PU3060. (×8)

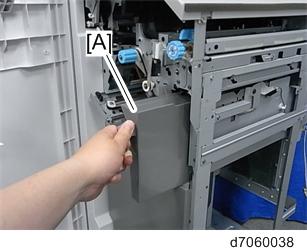

  20. Attach the hopper [A].
  21. Attach the rear upper cover, the rear lower cover, the inner cover, and the punch guide plate.
