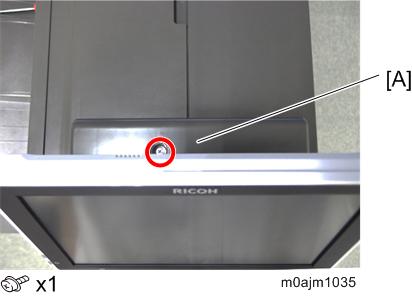

1. Remove the operation panel upper cover [A].

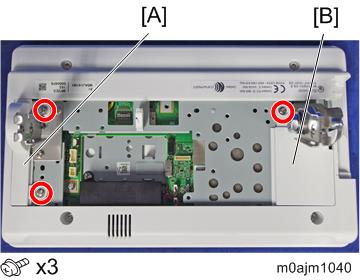

  2. Remove the screws and clamps that secure the operation panel.

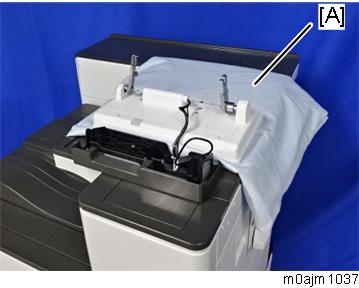

  3. Spread a cloth or service mat [A] on the machine's top panel to protect the display. Place the operation panel on the exposure glass so that the display faces down.

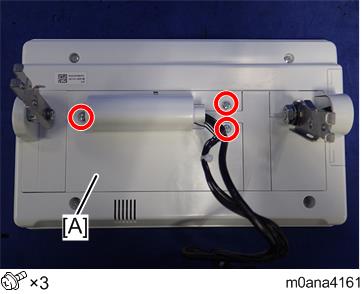

  4. Remove the rear center cover [A].

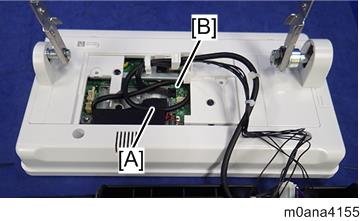

  5. Release the clamp, and then make the cable straight [A].

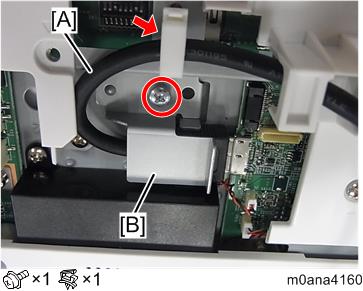

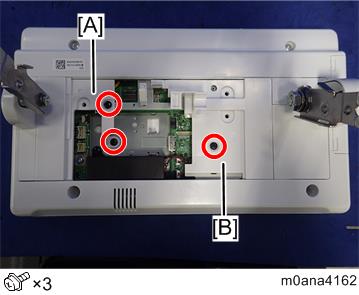

  6. Remove the bracket [B].

    When installing, attach the bracket [B] first, and then bend the cable [A] and secure it.

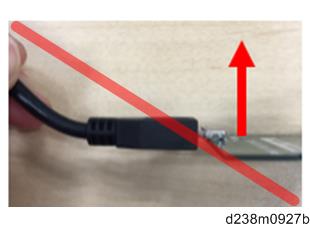

     Do not apply excessive force on the connector part. Applying excessive upward force on the connector may cause connection failure.

  7. Disconnect the USB cable [A] and the harness [B].

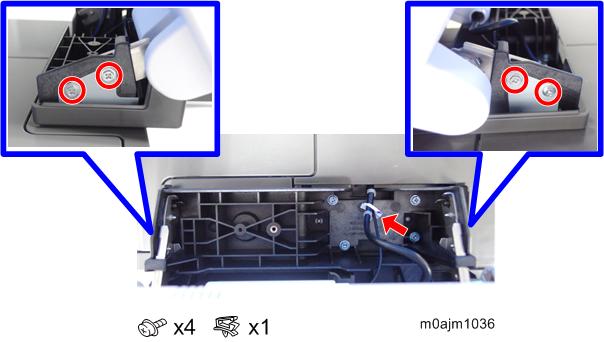

  8. Remove the left small cover [A] and right cover [B].

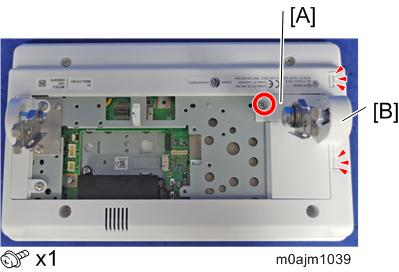

  9. Remove the right small cover [A] and right hinge cover [B]. (Hook x 2)


  10. Remove the left hinge cover [A] and right medium cover [B].

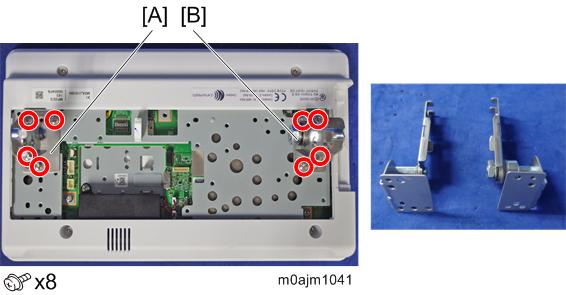

  11. Remove the hinges [A] [B].
