SP 8400DN
Replacement and Adjustment
Fans/Filters
Dust filter
Remove the PCDU. (
PCDU
)

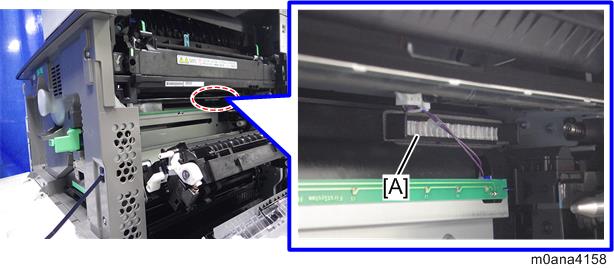

Remove the dust filter [A].

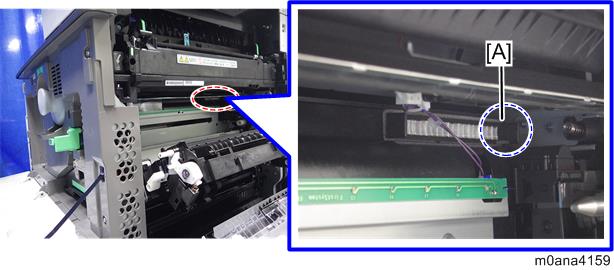

Attach the right side [A] of the filter first when you mount it.
