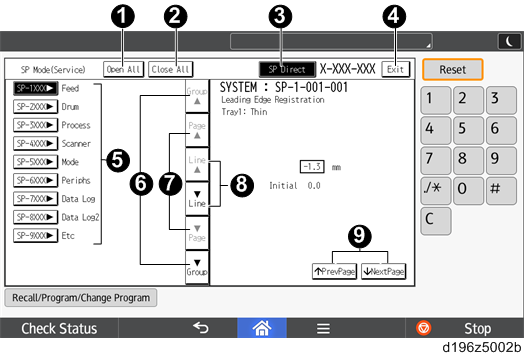

Here is a short summary of the touch-panel buttons.
1 | Opens all SP groups and sublevels. |
2 | Closes all open groups and sublevels and restores the initial SP mode display. |
3 | Enter the SP code directly with the number keys if you know the SP number. Then press [#]. The required SP Mode number will be highlighted when pressing [#]. If not, just press the required SP Mode number. |
4 | Press two times to leave the SP mode and return to the printer screen to resume normal operation. |
5 | Press any Class 1 number to open a list of Class 2 SP modes. |
6 | Press to scroll the show to the previous or next group. |
7 | Press to scroll to the previous or next display in segments the size of the screen display (page). |
8 | Press to scroll the show the previous or next line (line by line). |
9 | Press to move the highlight on the left to the previous or next selection in the list. |
