1. Remove the right cover. (Right Cover)
  2. Pull out the 1st paper feed tray.

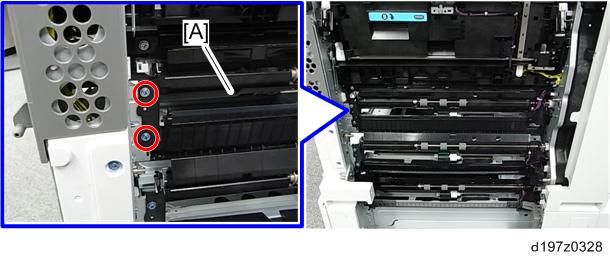

  3. Remove the screws attached to the 1st paper feed unit [A] (x2).

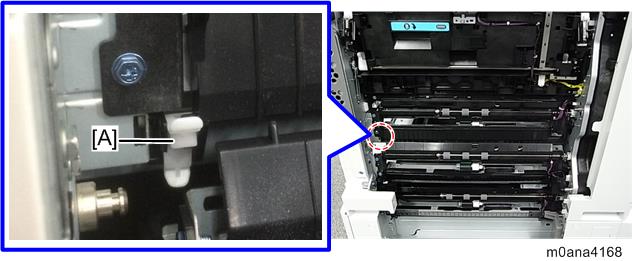

  4. Remove the stopper [A].

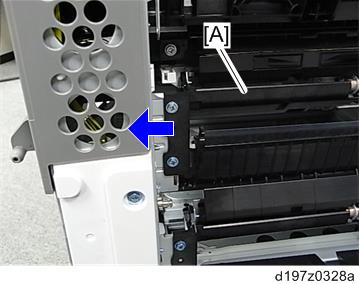

  5. Pull out the 1st paper feed unit [A] slightly toward the front.

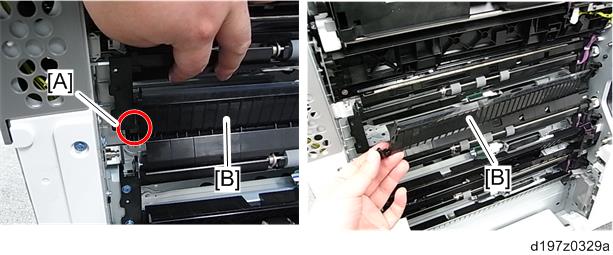

  6. Release the shaft [A] on the front side first to remove the paper feed guide plate [B].

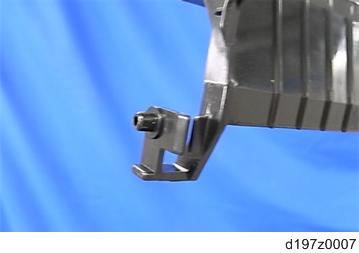

    • The following picture shows the shape of the guide plate at the front side.

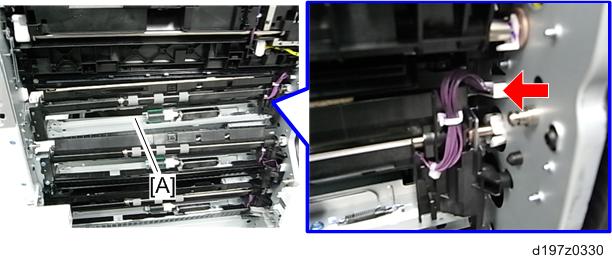

  7. Remove the 1st paper feed unit [A]. (x1)
