1. Pull out the toner bottle.
  2. Remove the PCDU. (PCDU)
  3. Remove the waste toner bottle. (Waste Toner Bottle)
  4. Remove the front cover. (Front Cover)

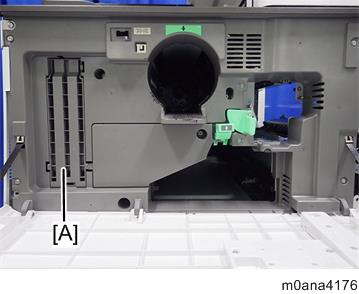

  5. Remove the support [A].

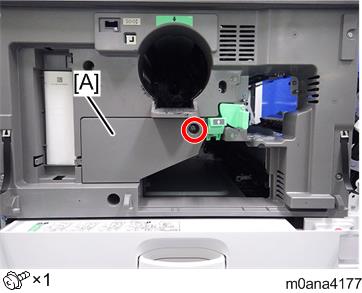

  6. Remove the laser unit cover [A].

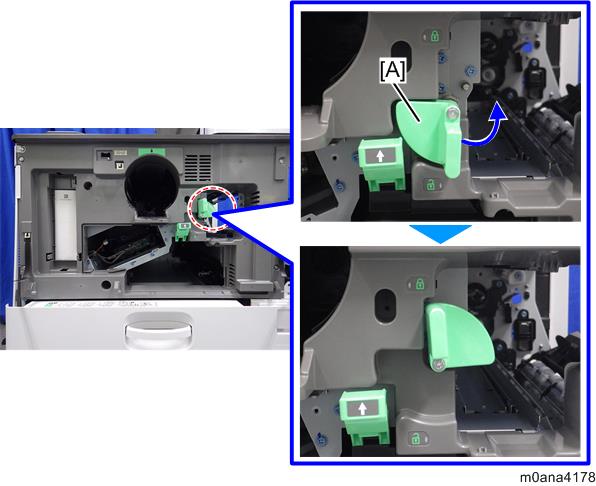

  7. Lift the lever [A].


  8. Pull the 1st paper feed tray a short way out.

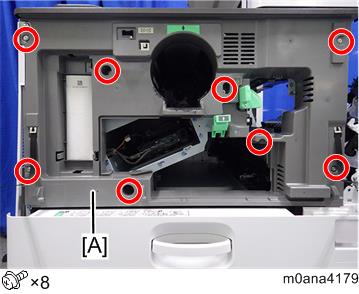

  9. Remove the inner cover [A].
