- To clear SC544-02 or SC554-02, attach the new unit detection fuse provided with the heating sleeve belt unit or replace the fusing unit.
- Prepare a new fuse provided with the heating sleeve belt unit.
- Remove the fusing upper cover. (Fusing Upper Cover)

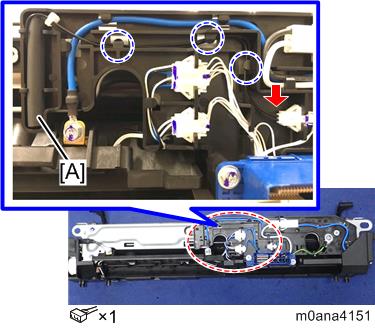

- Install the fuse [A].
- Reassemble the fusing unit.
- Install the fusing unit in the machine.
- Enter the SP mode, and then clear SC544-02 or SC554-02 with SP5-810-002.
- Turn the machine off and on.
